MakieForProjects.jl

MakieForProjects.jl has two purposes:

1. Increase productivity when creating figures for (typically academic) papers or presentations within a self-contained project.

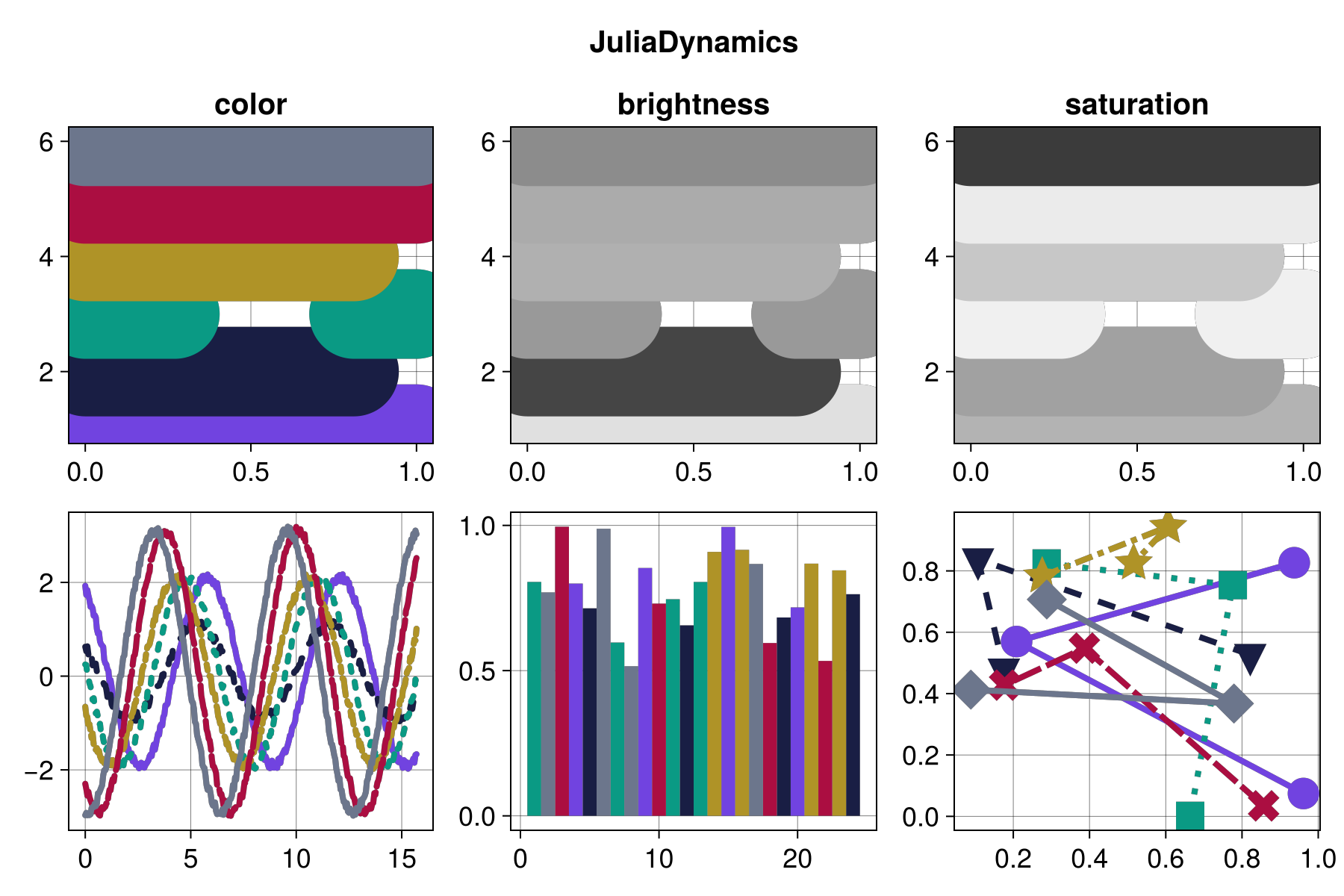

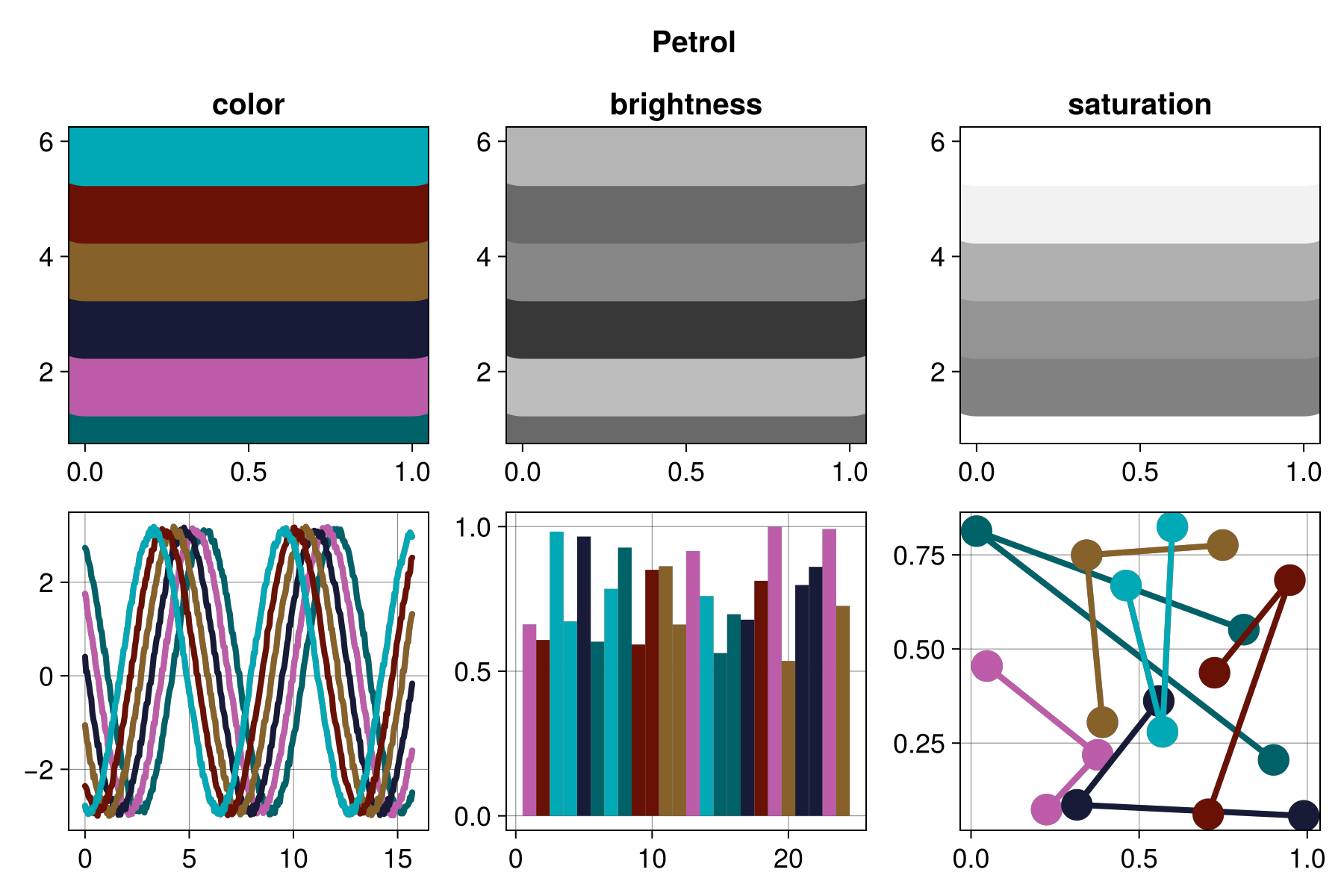

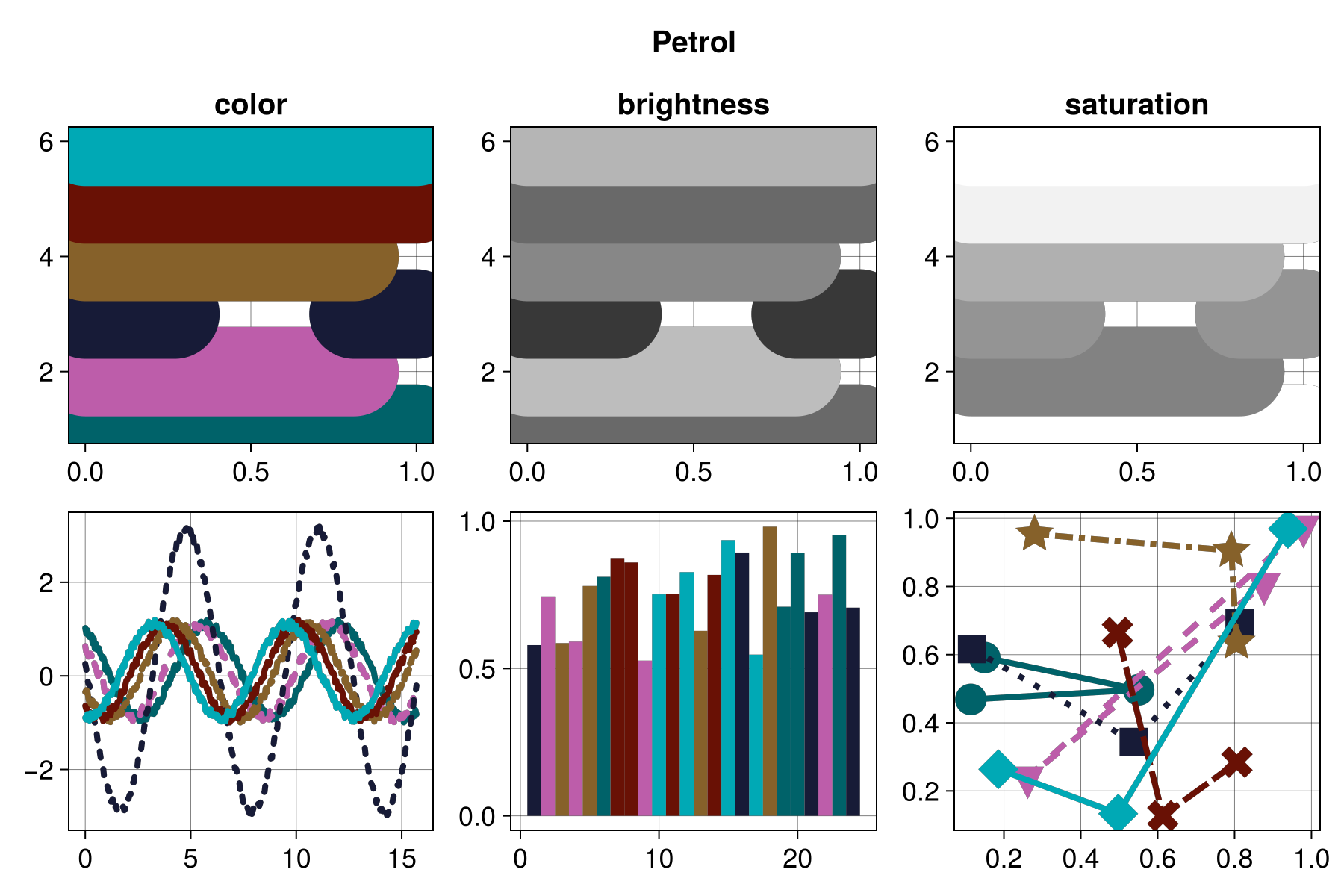

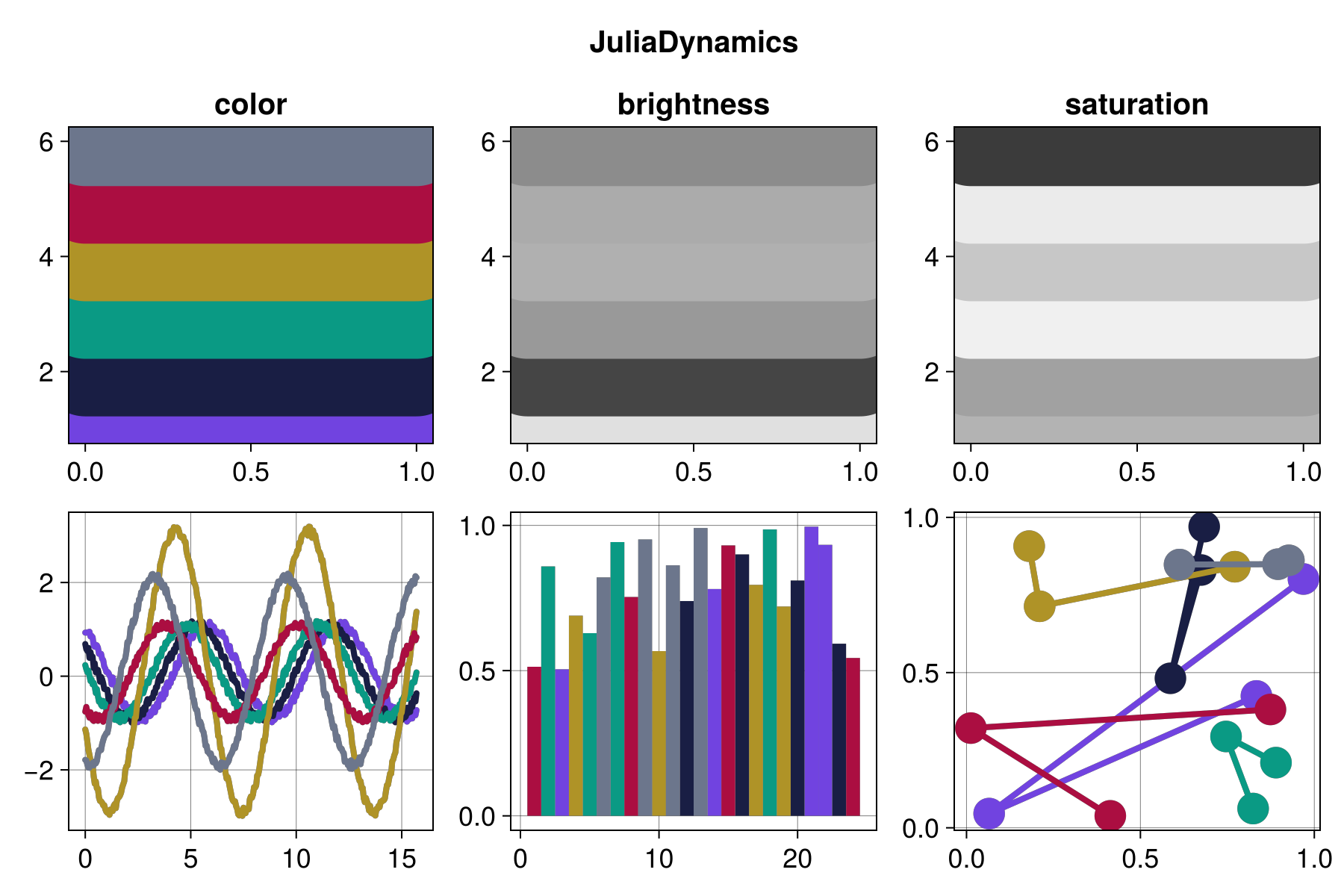

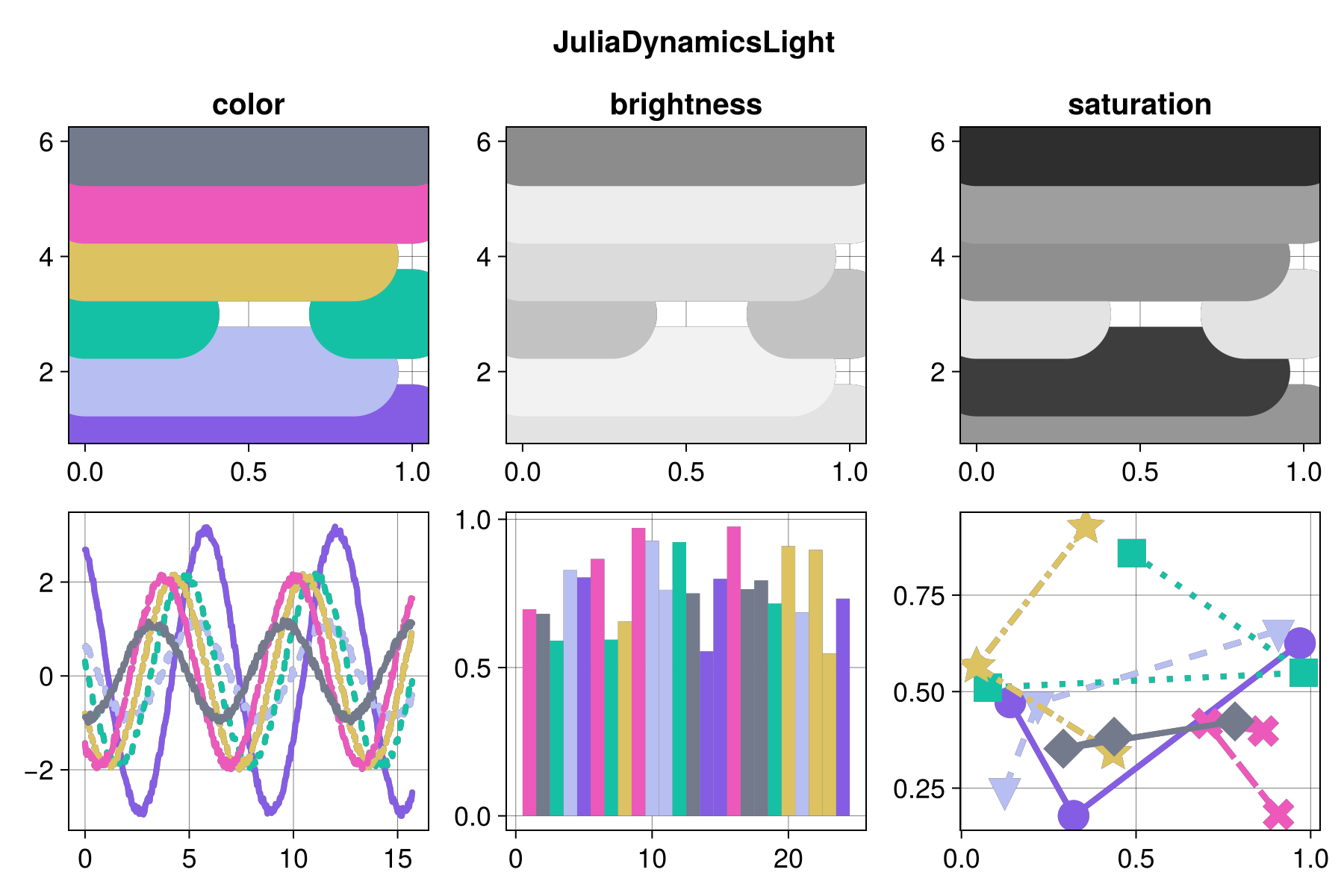

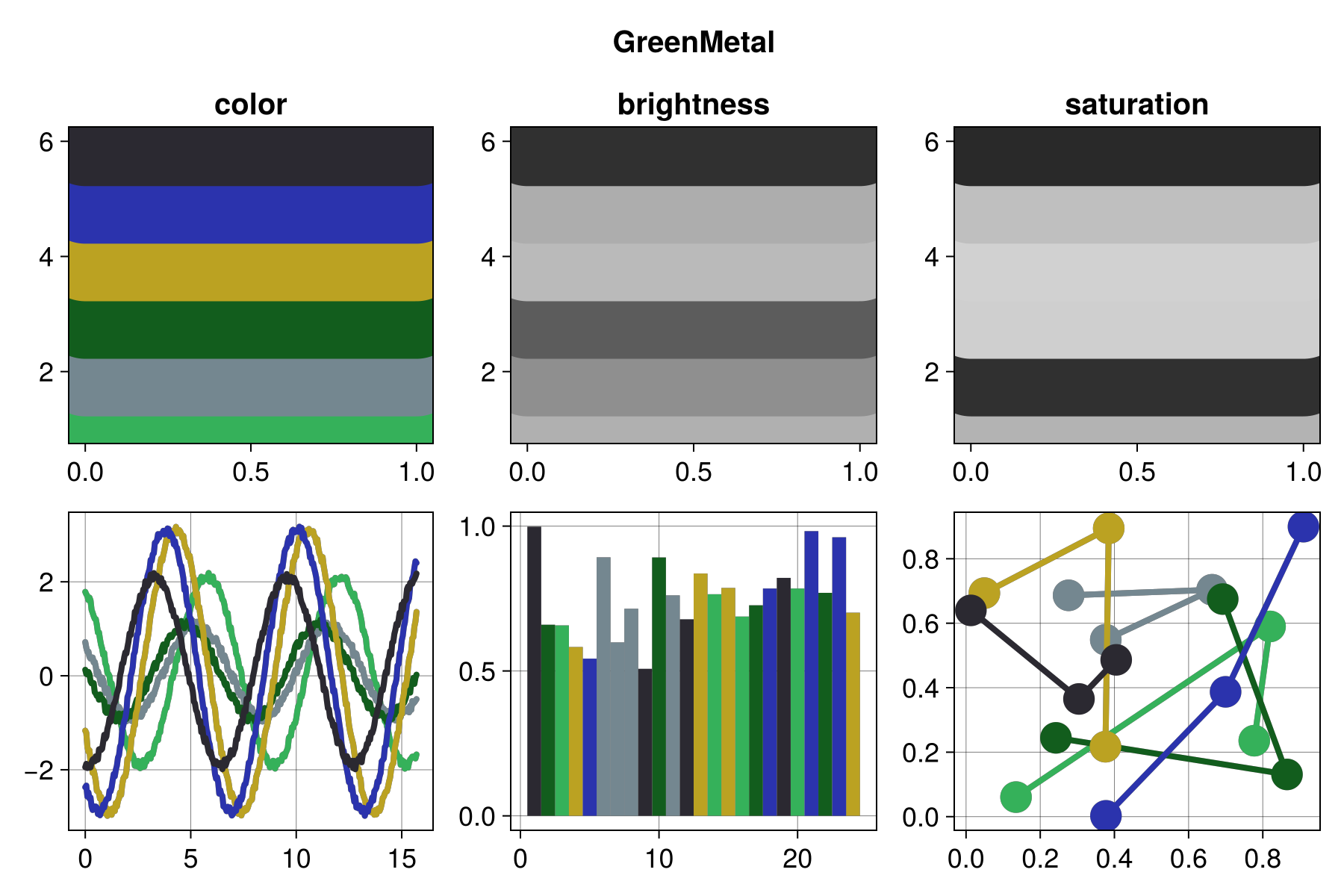

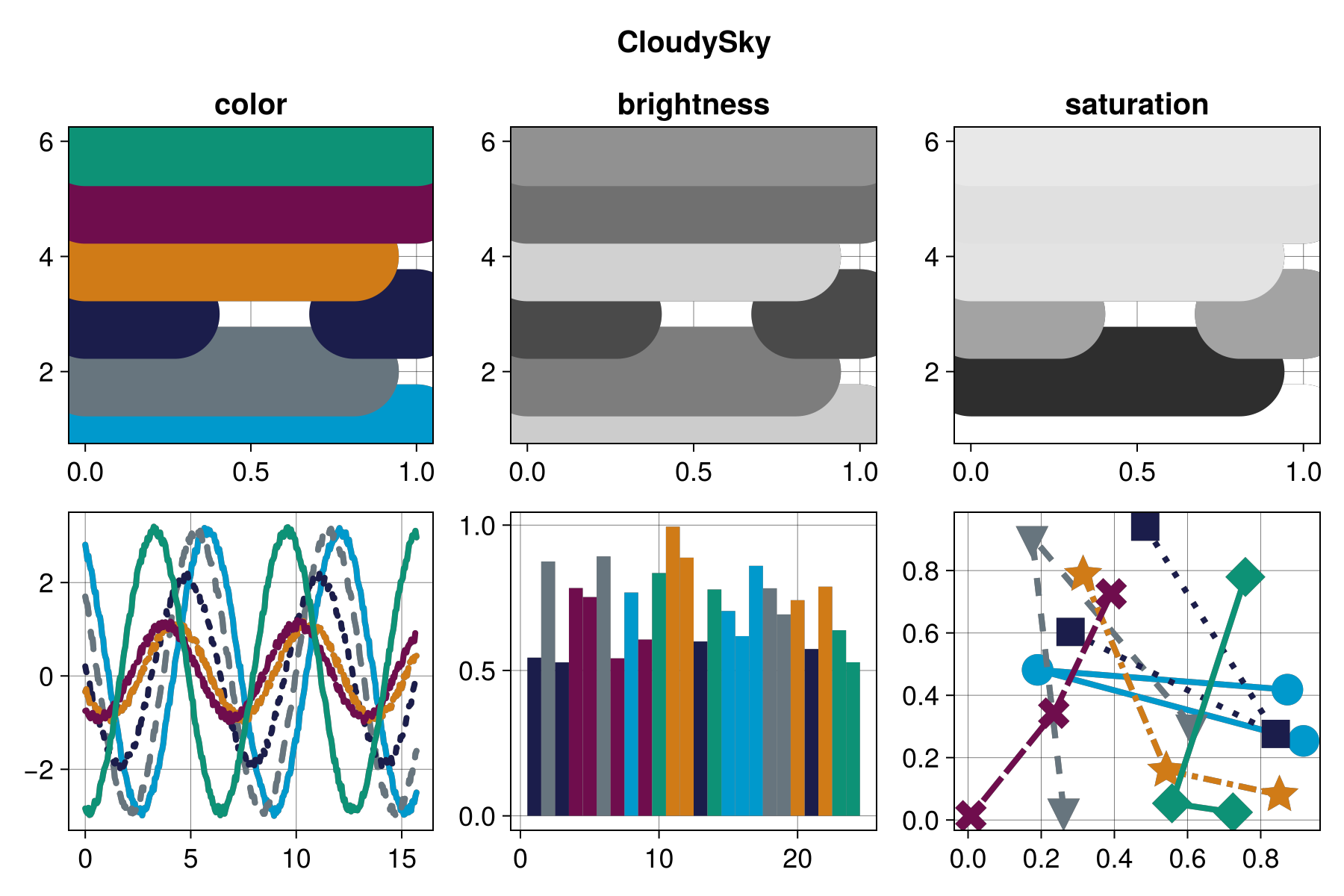

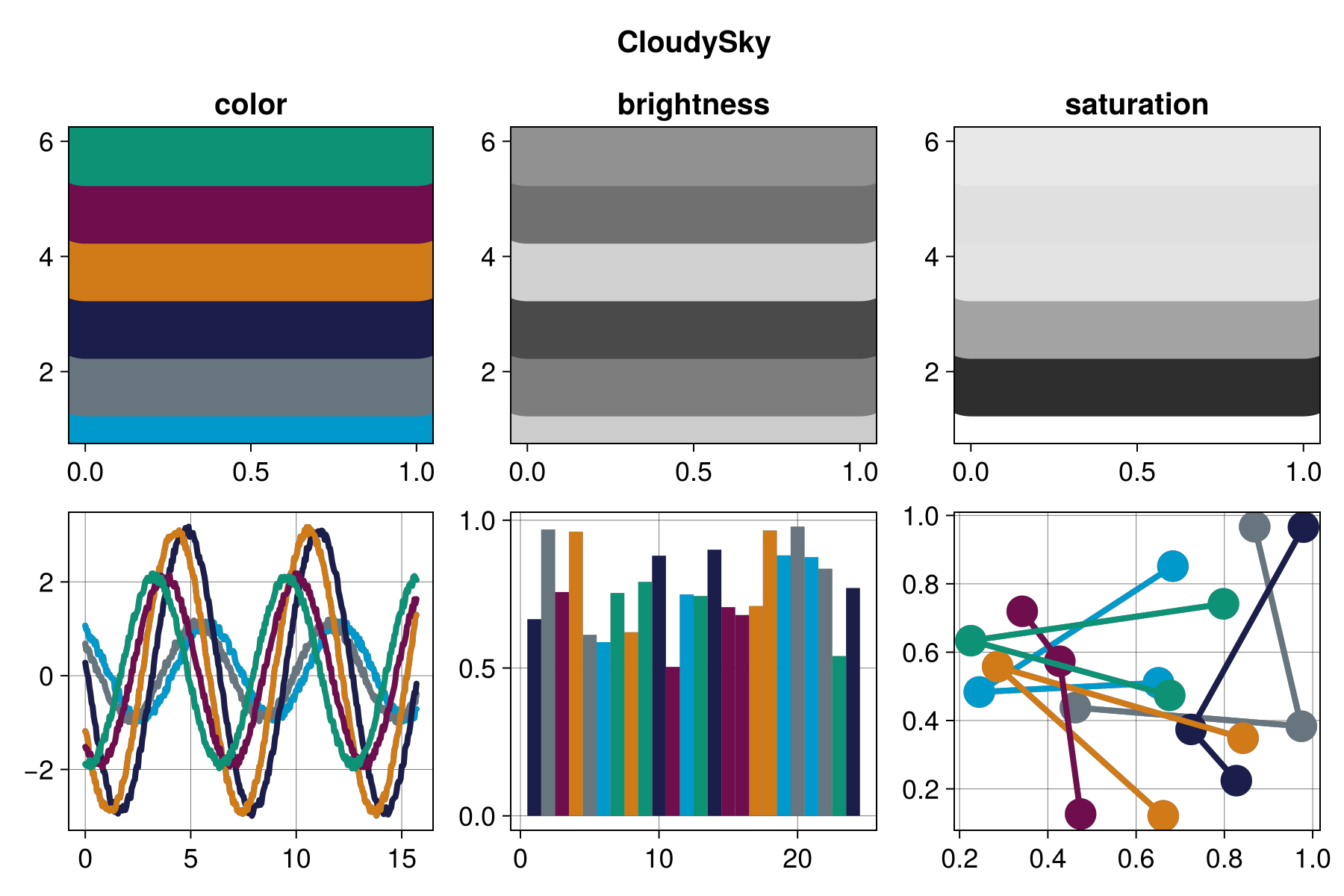

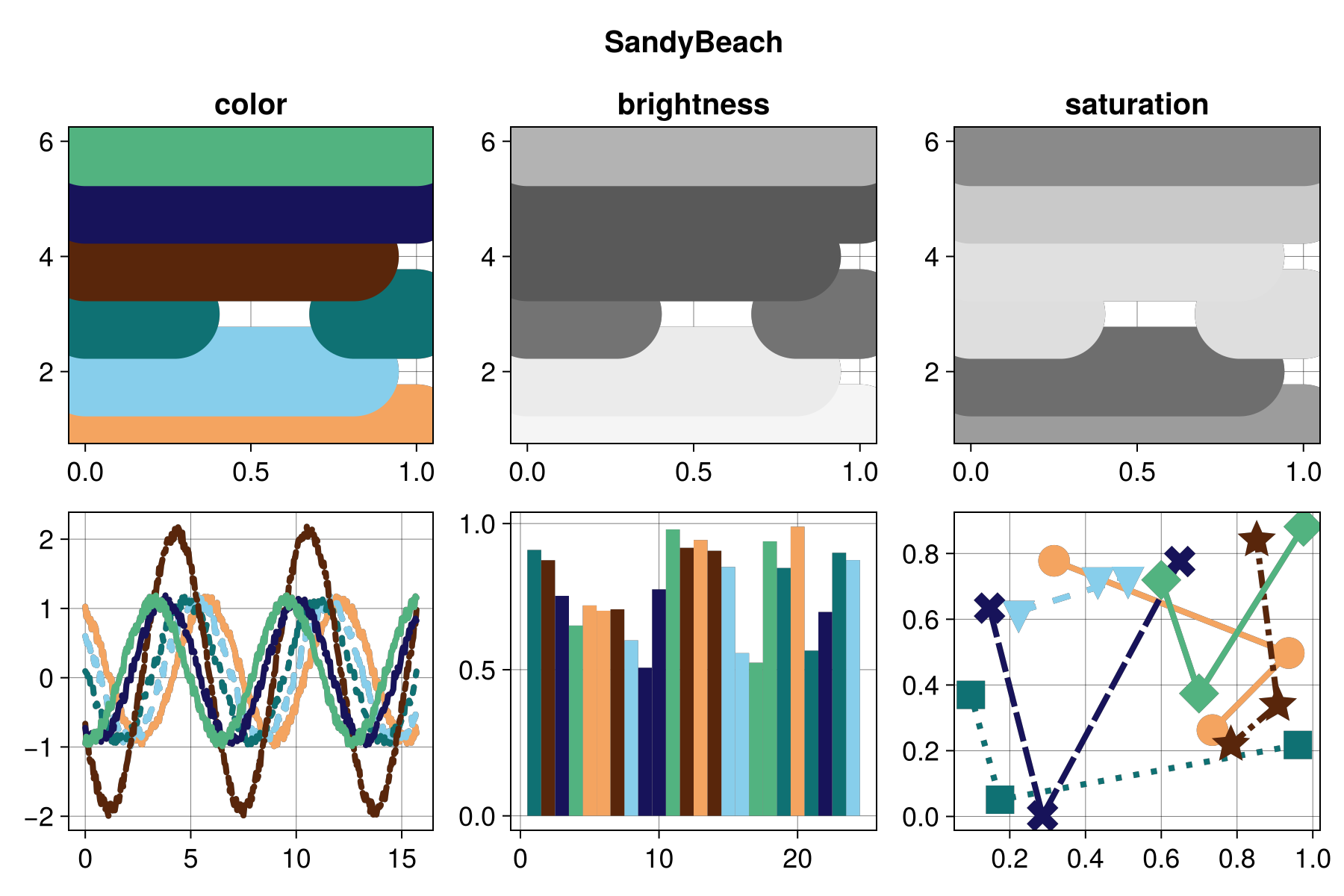

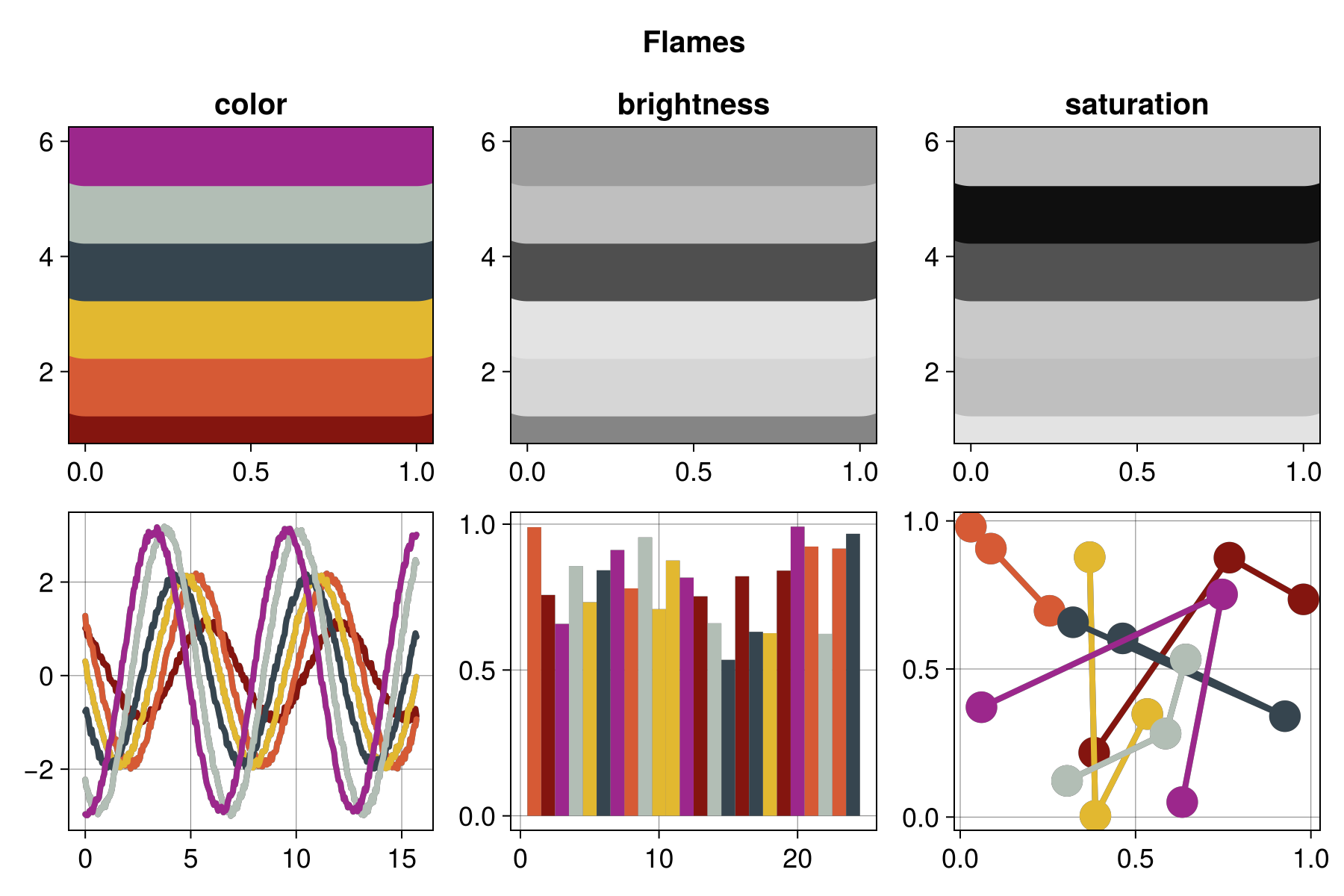

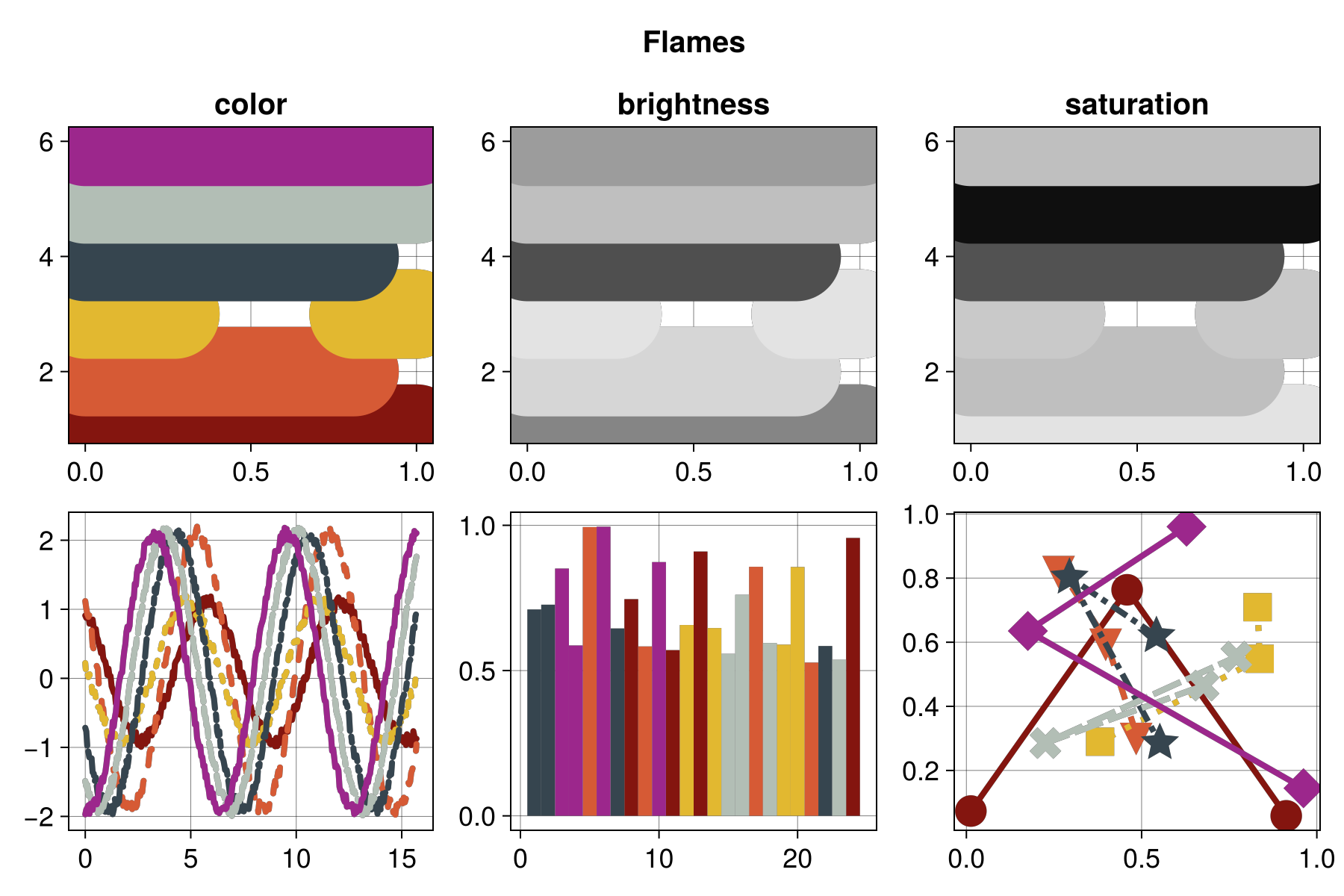

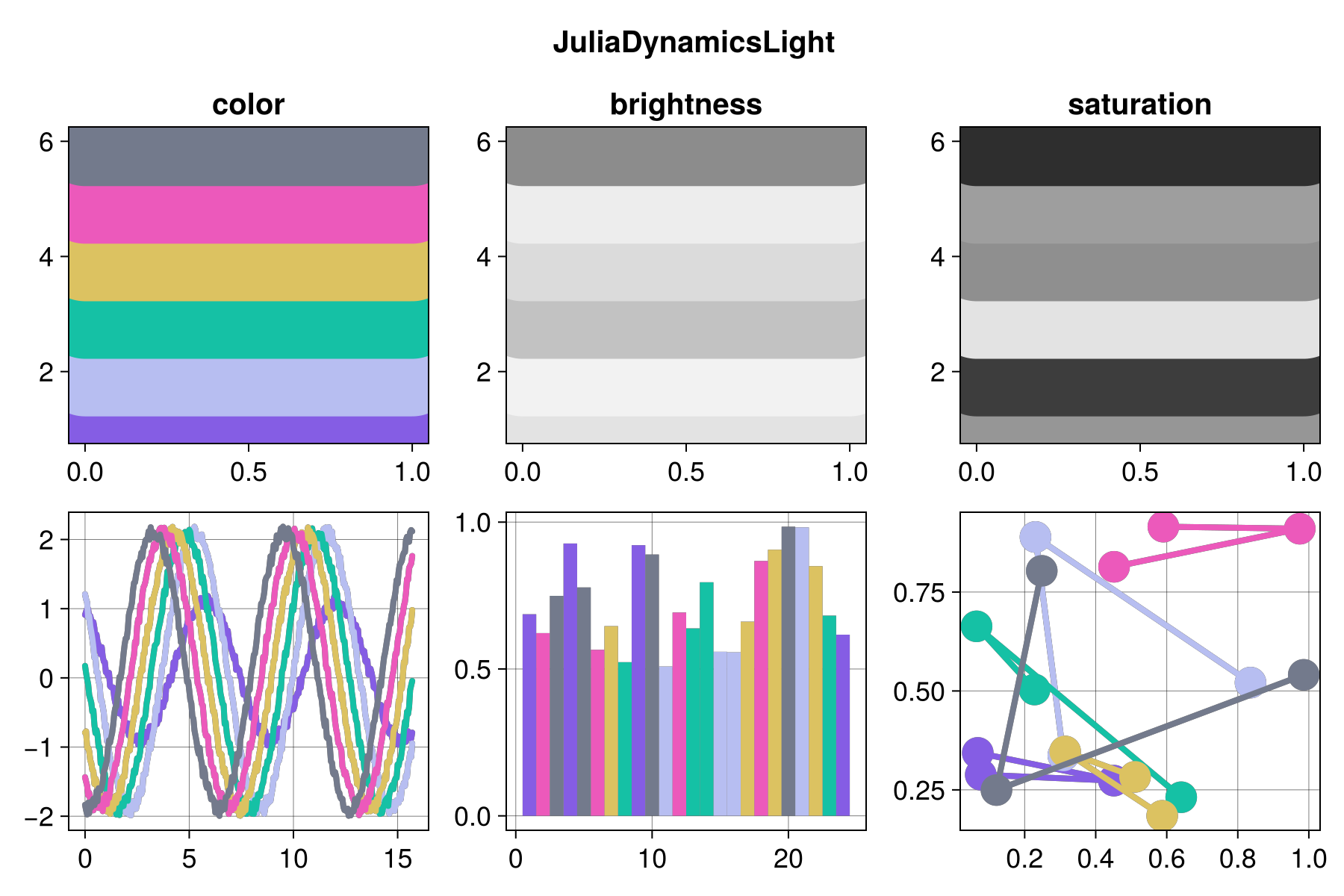

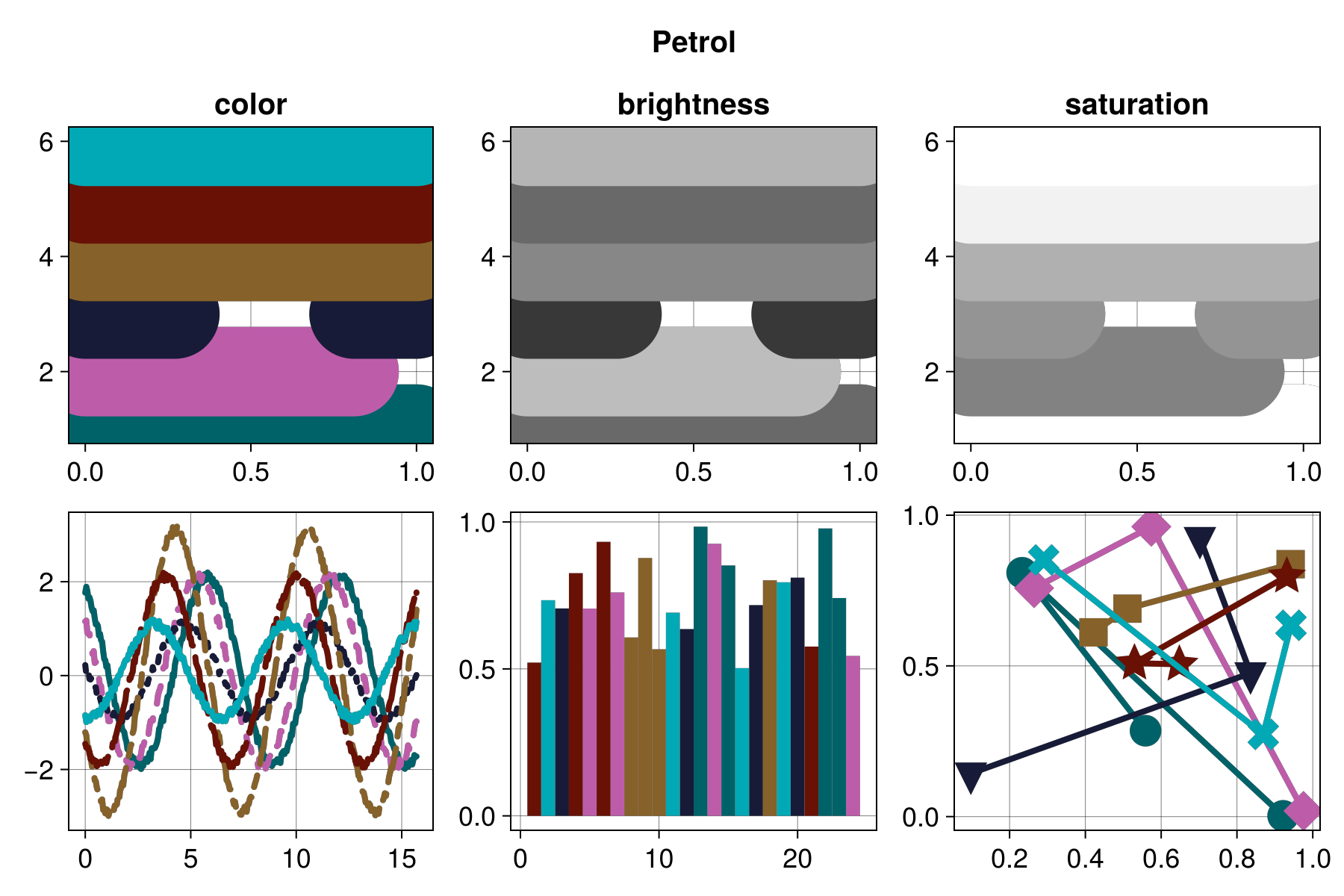

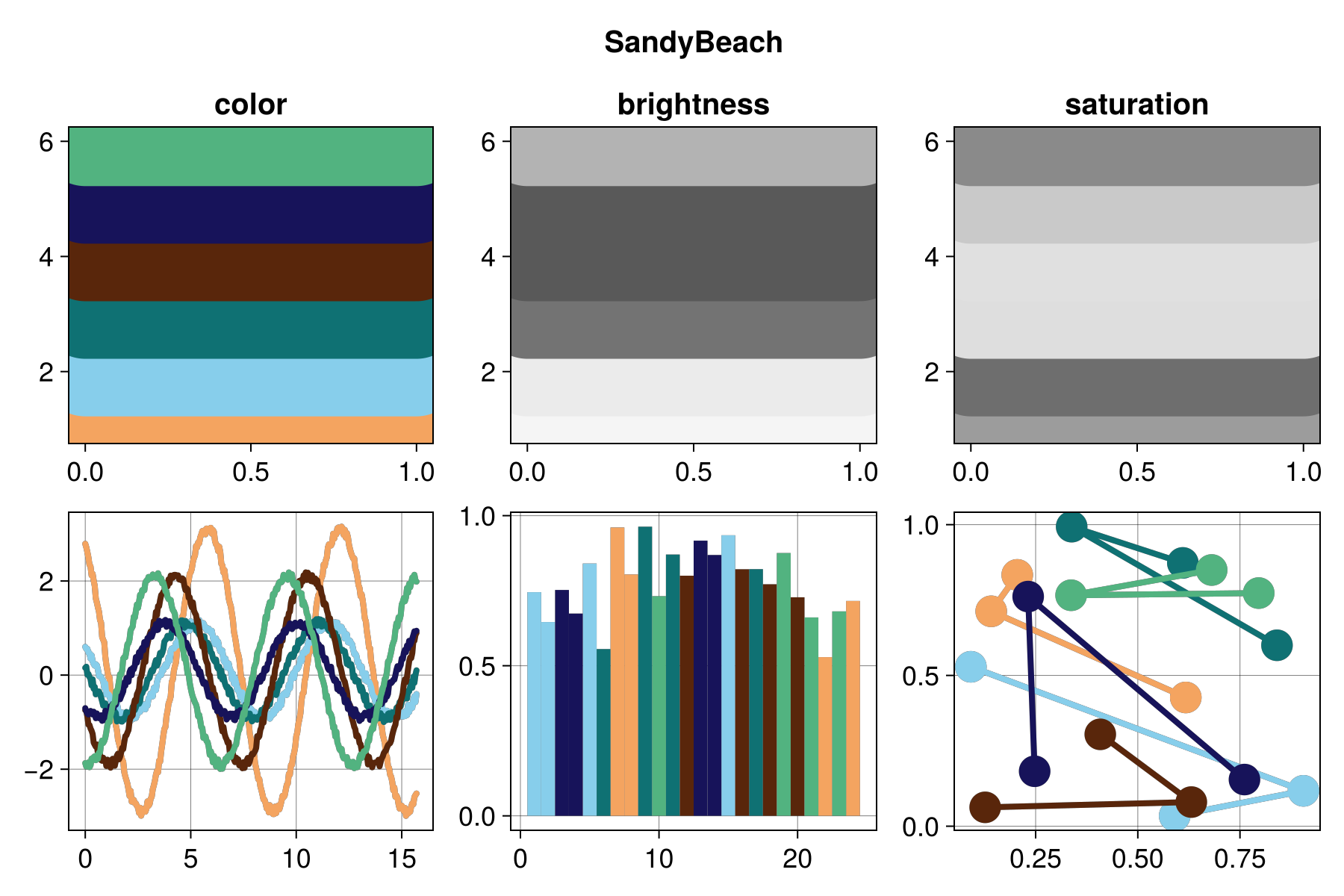

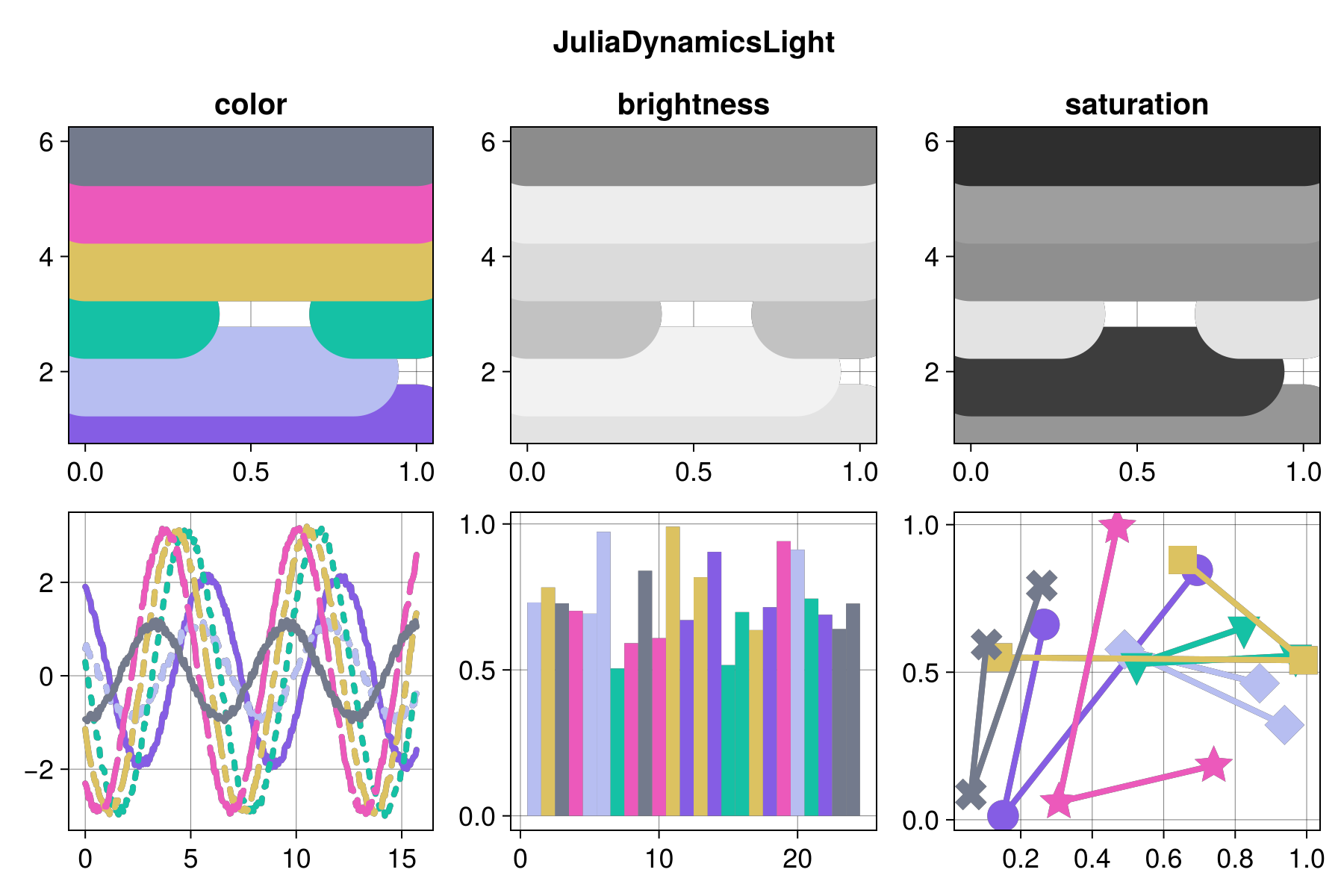

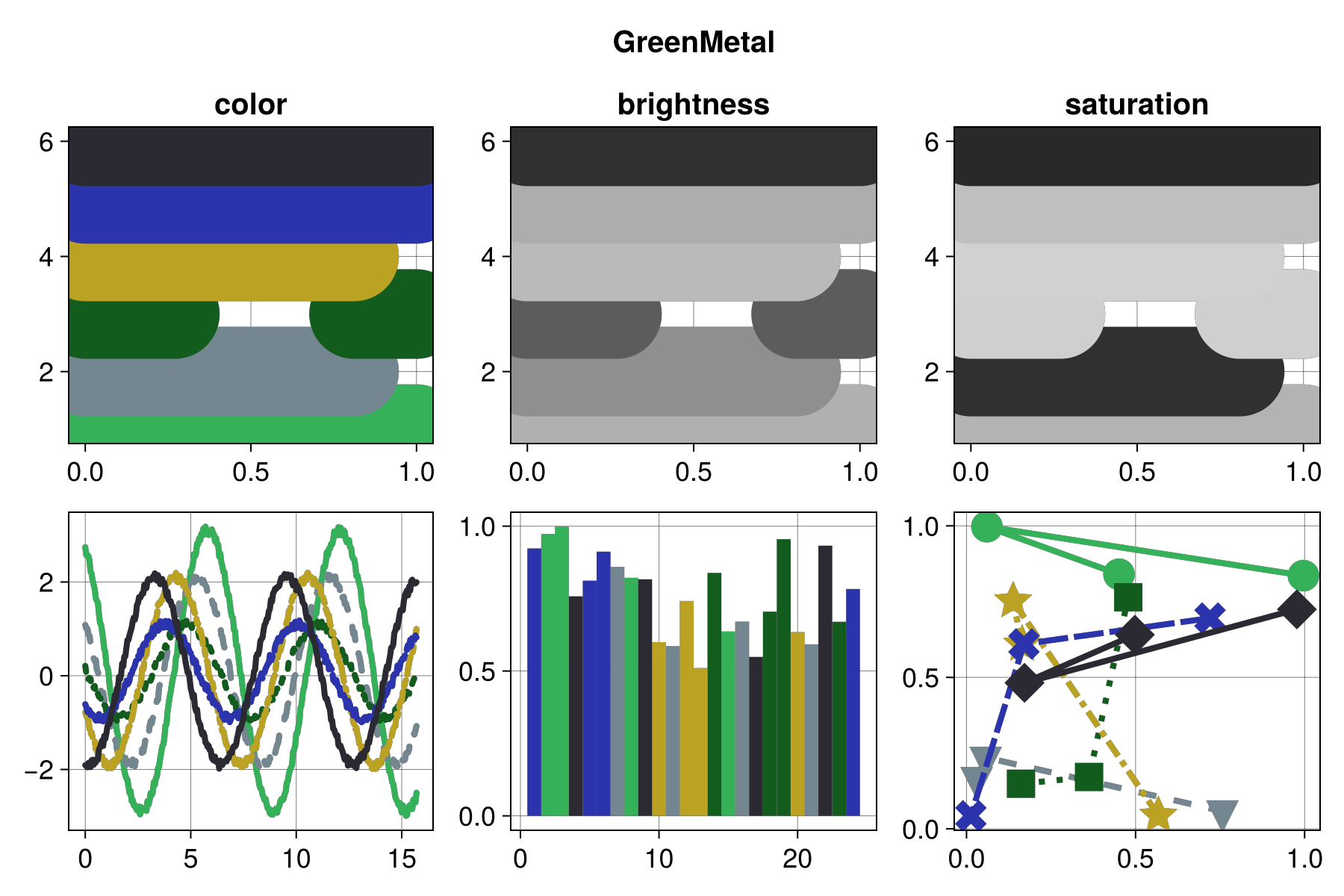

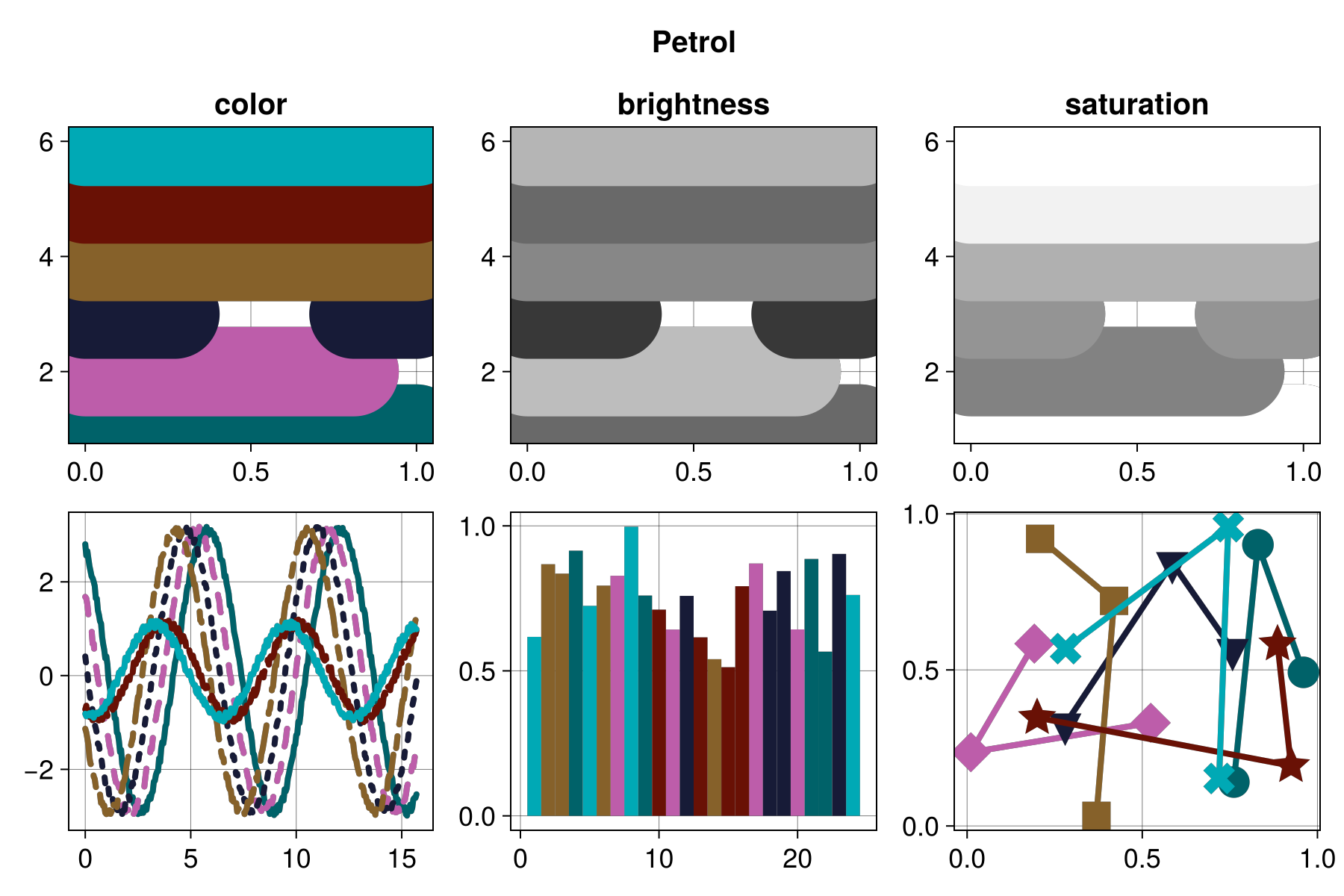

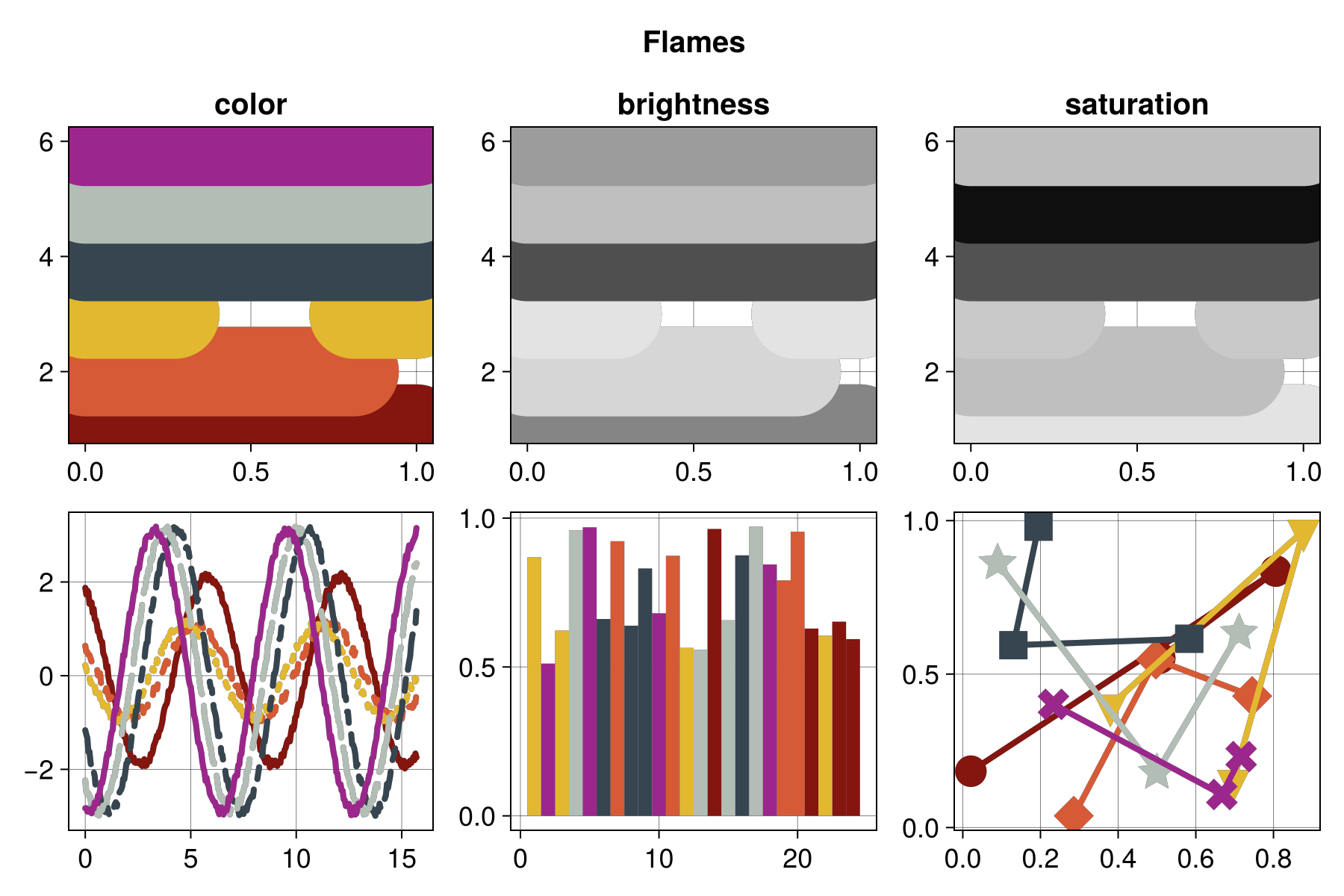

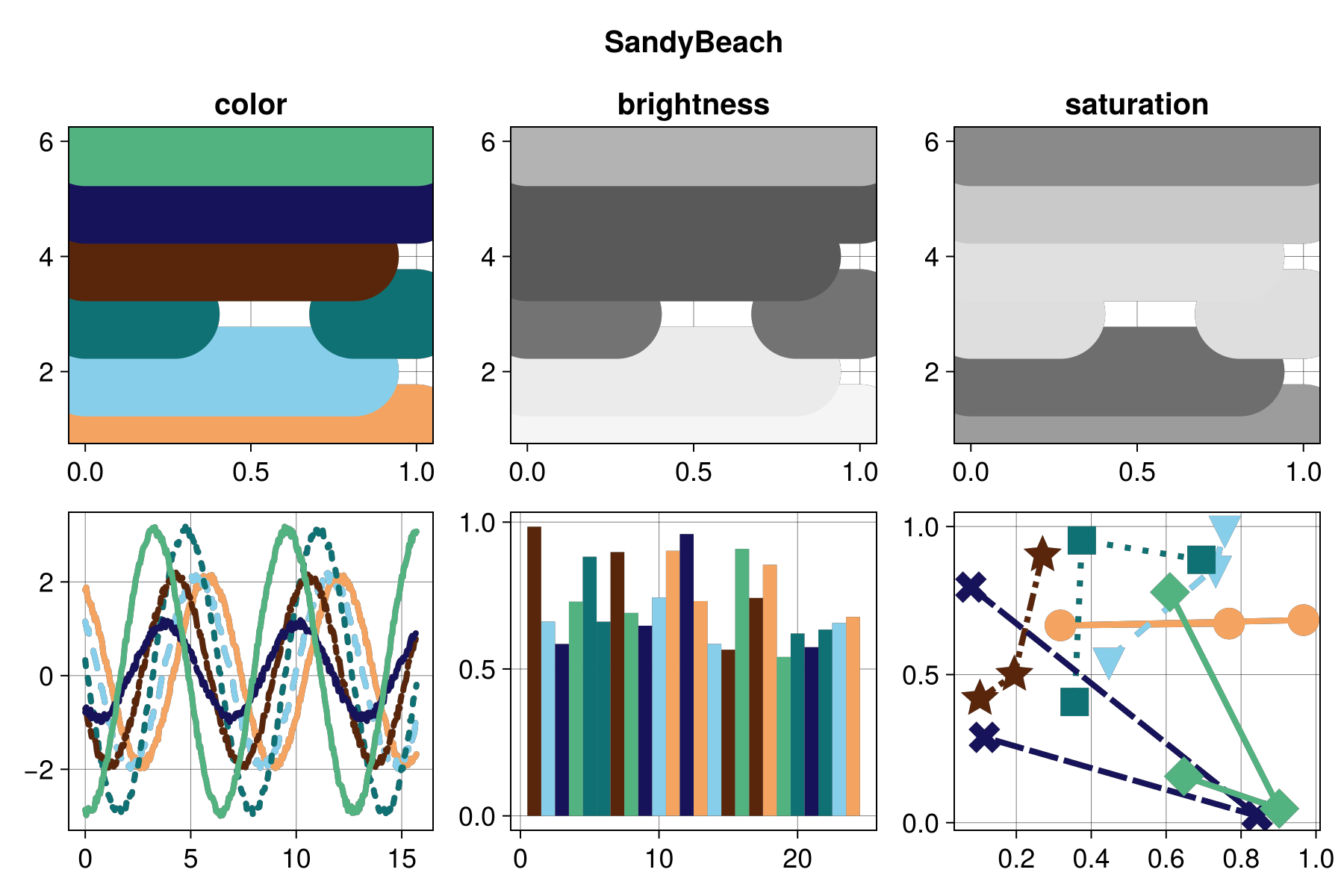

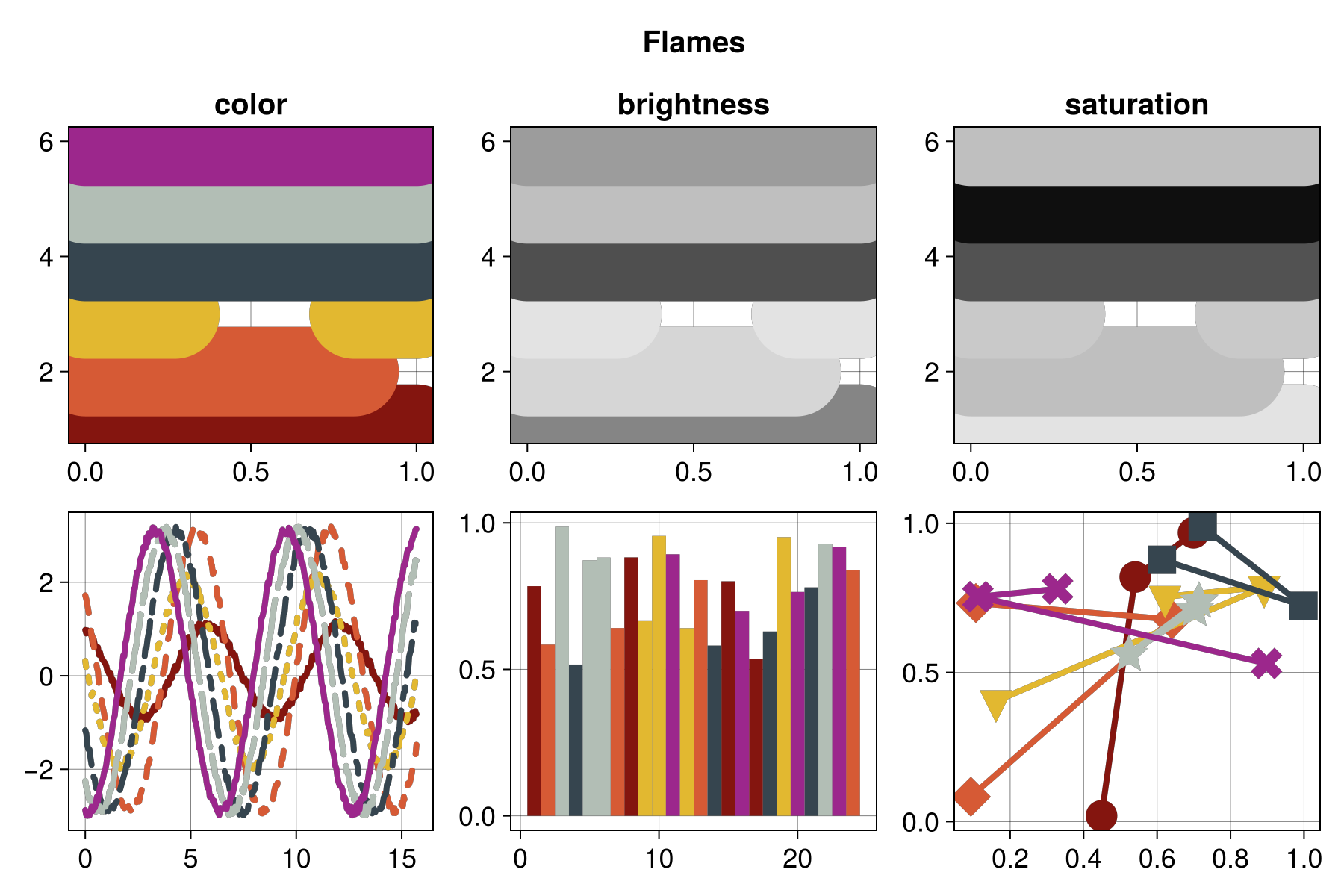

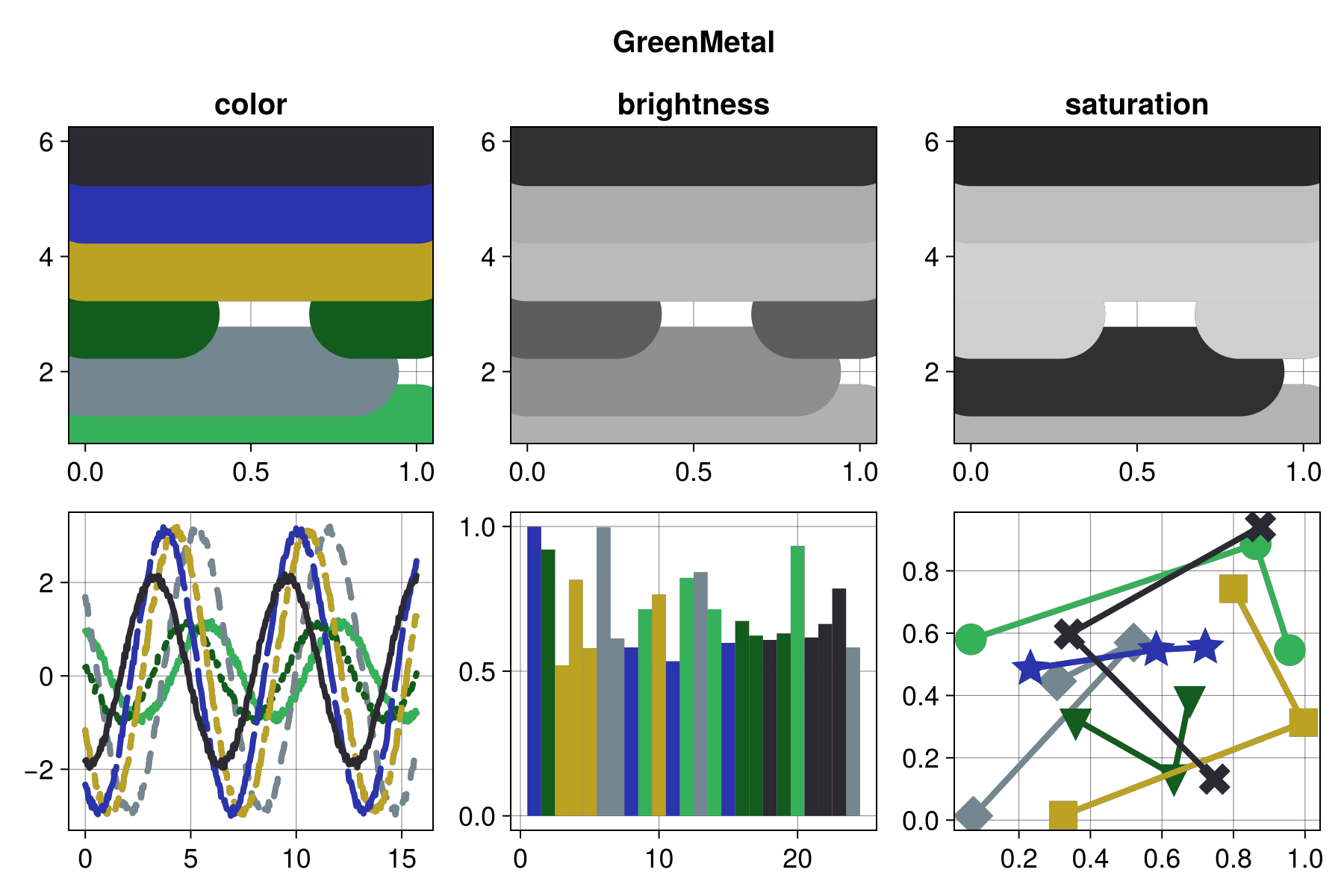

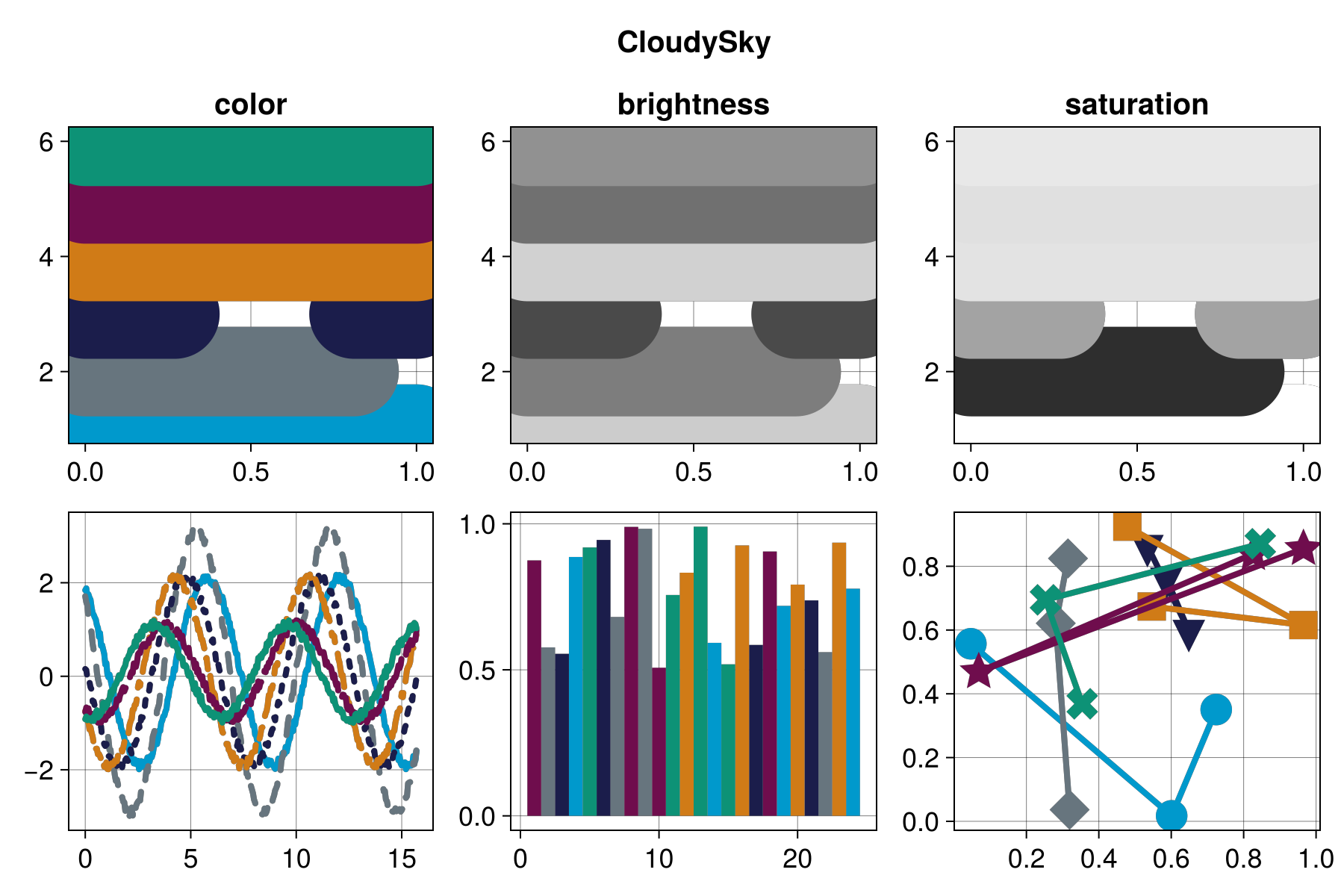

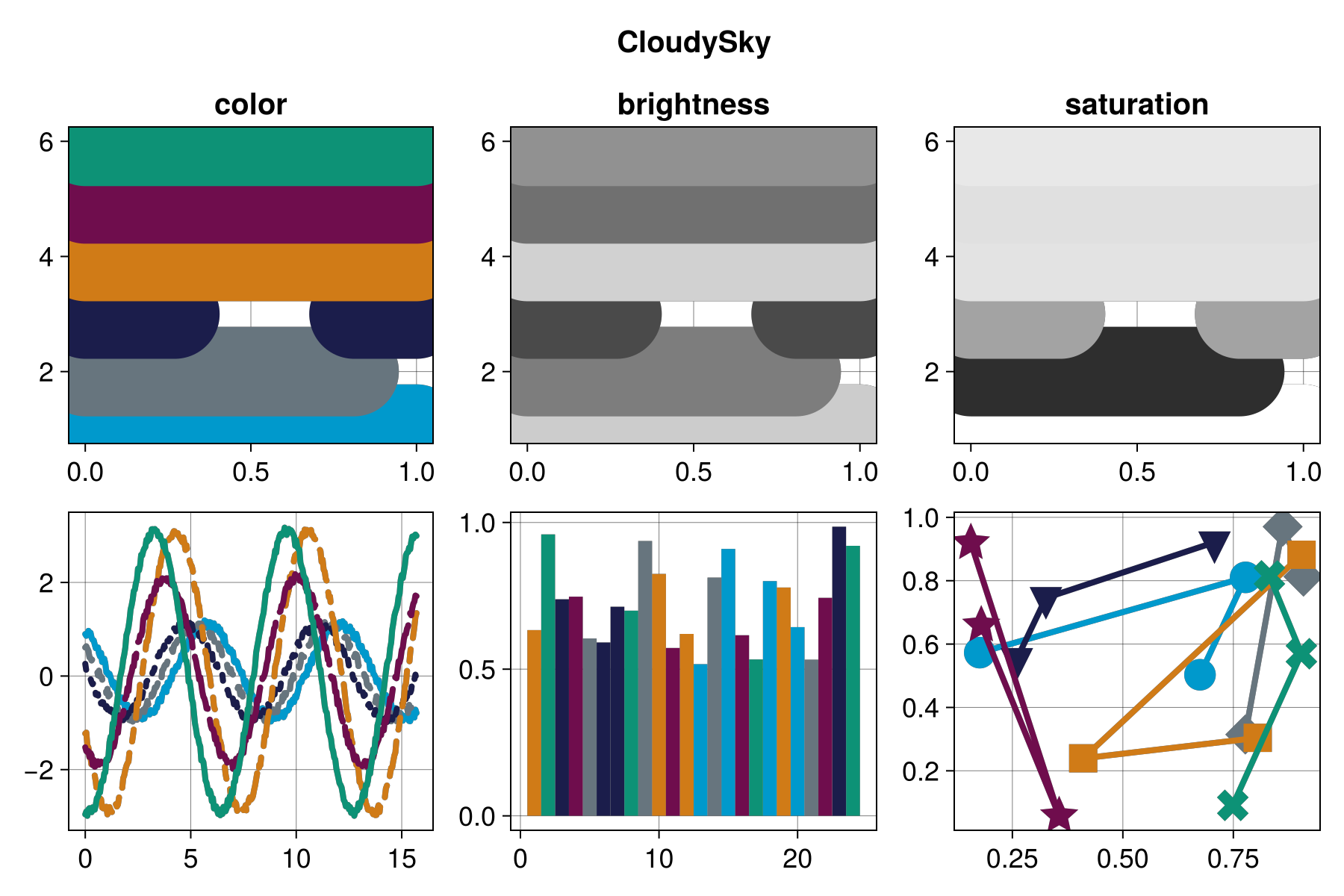

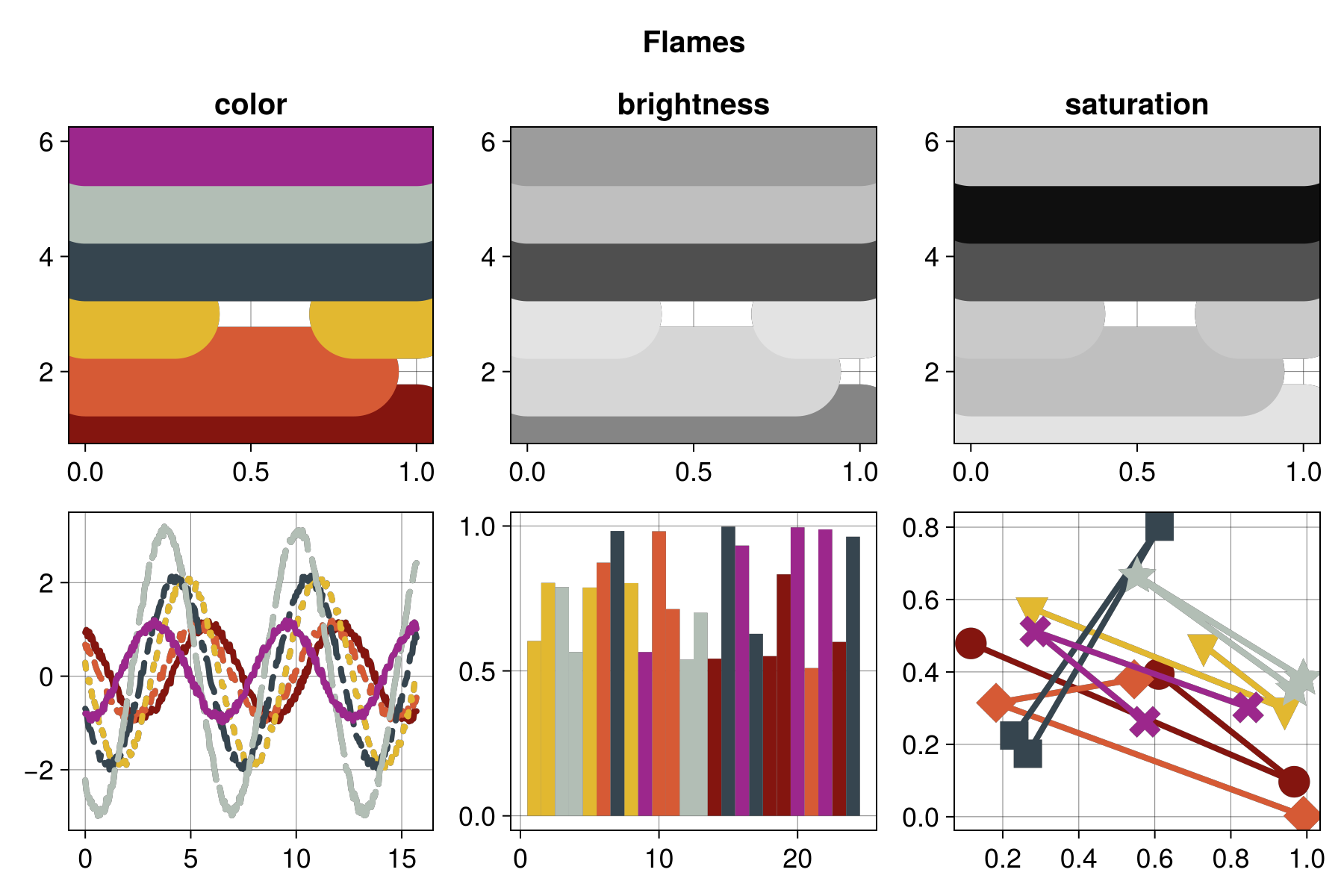

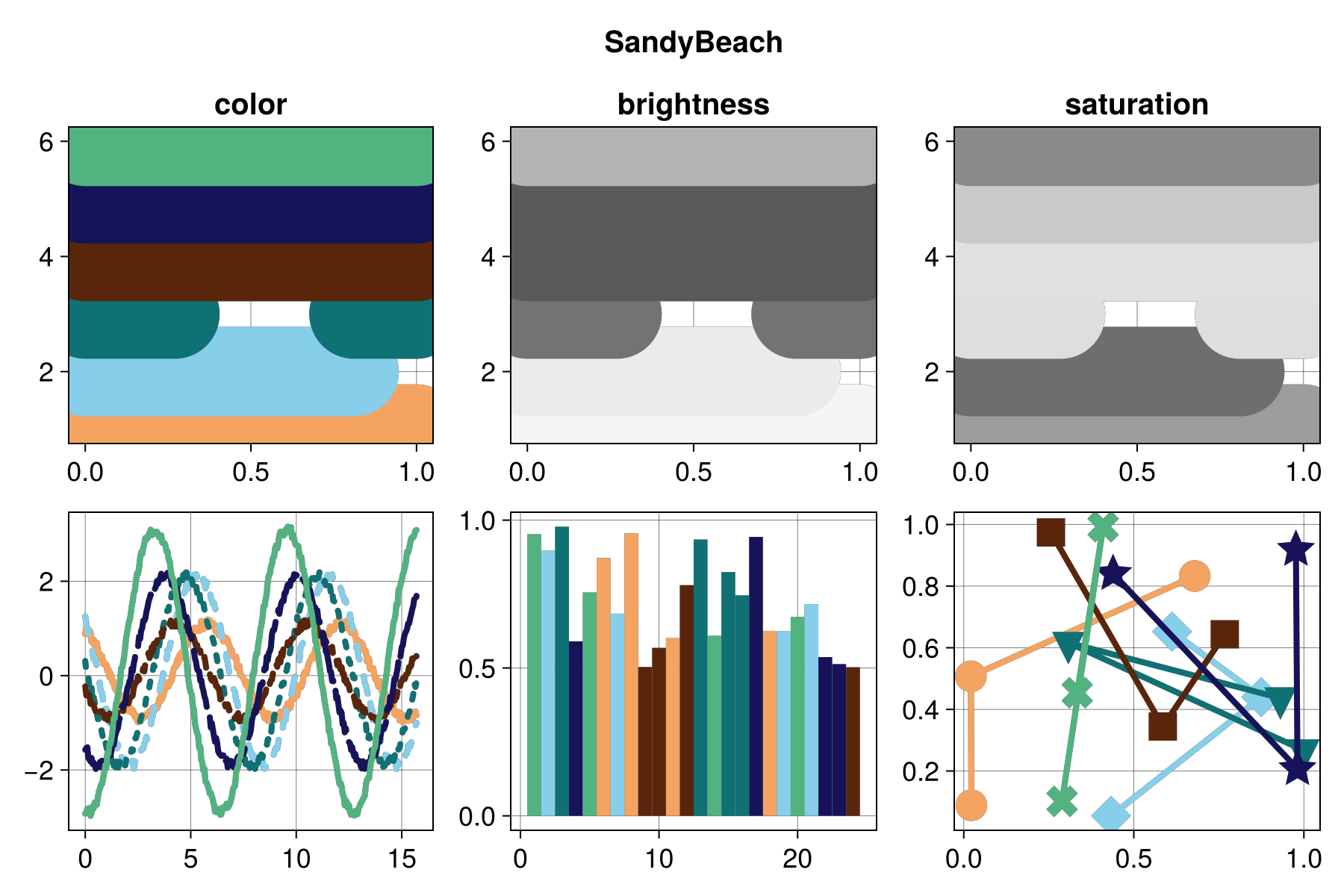

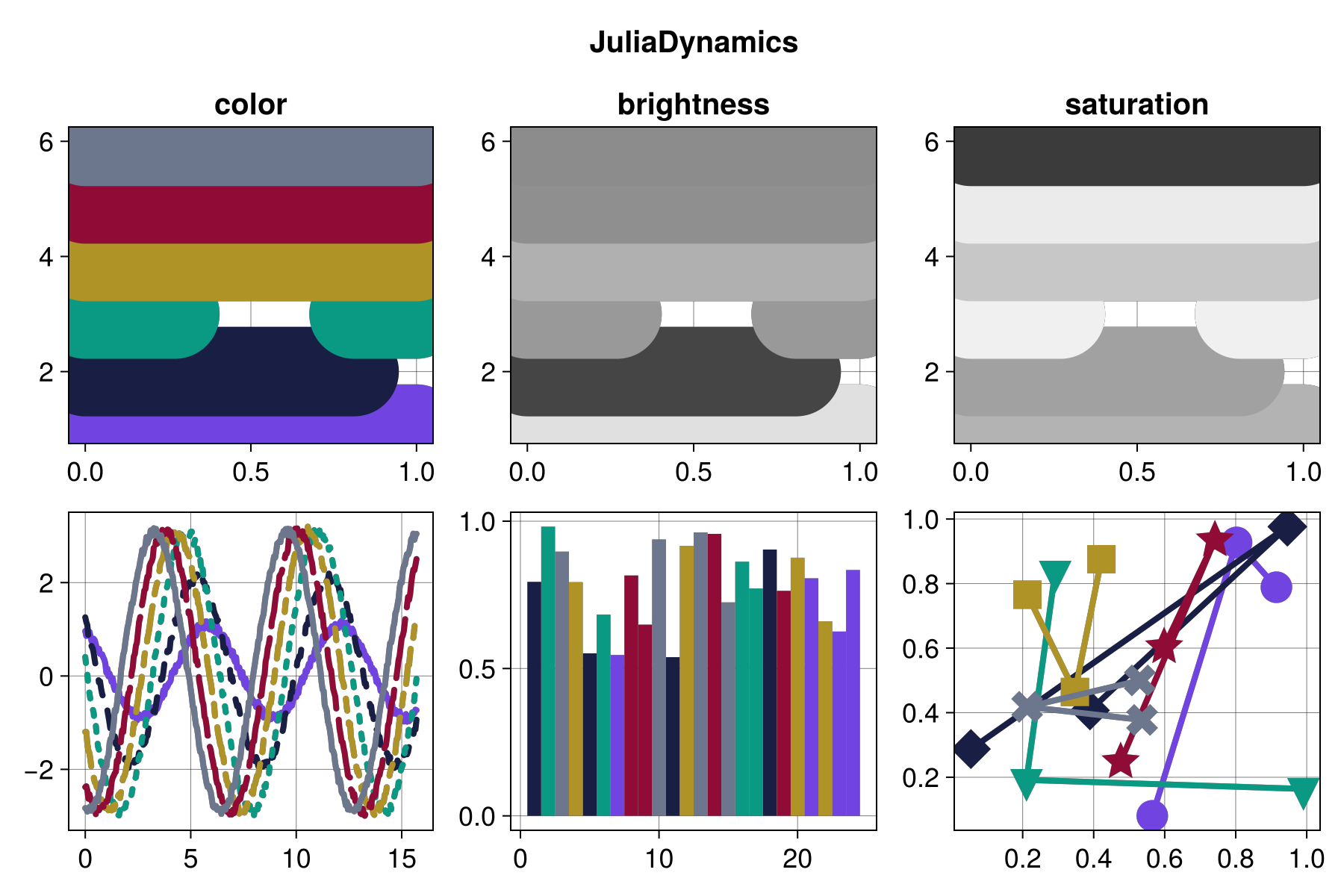

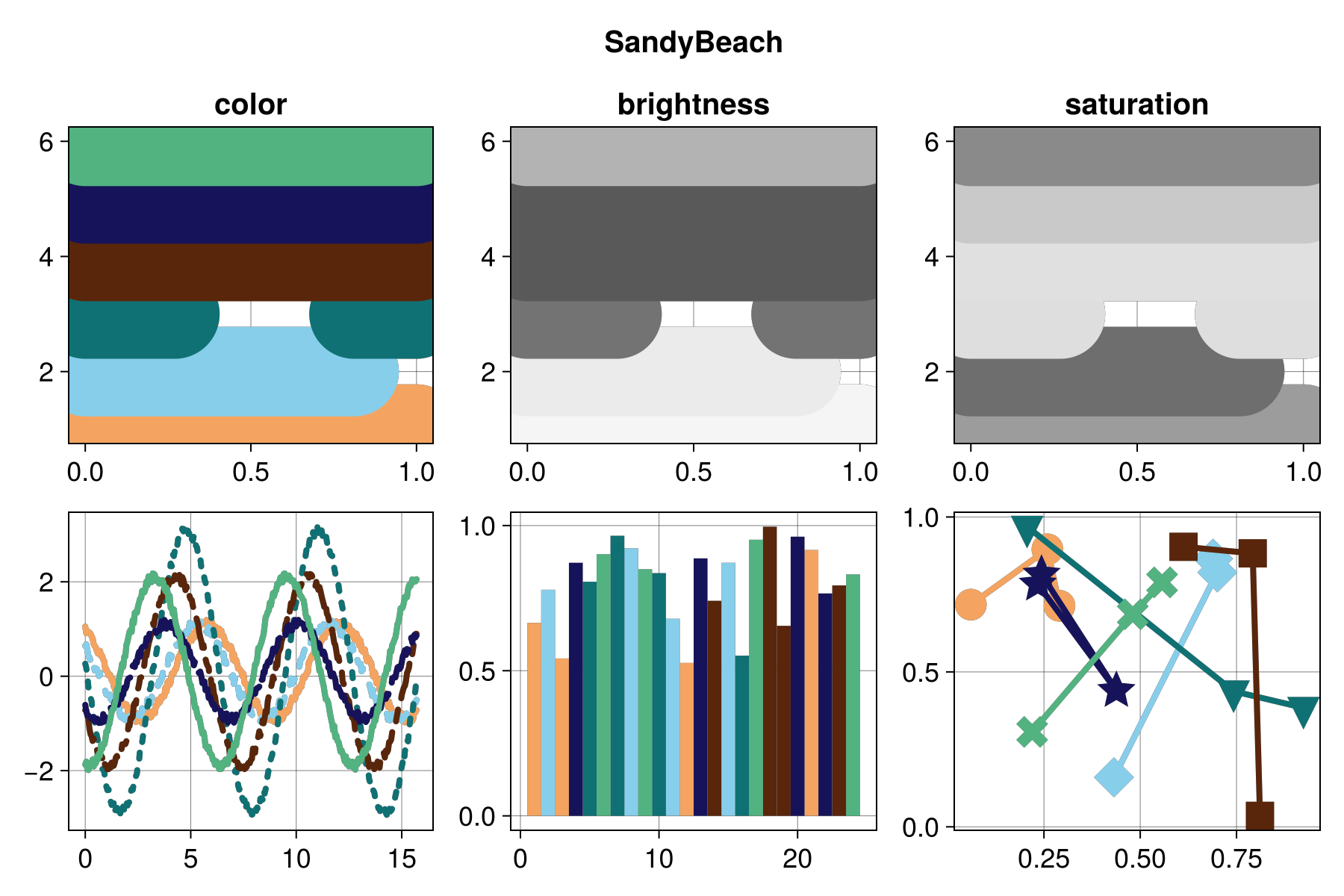

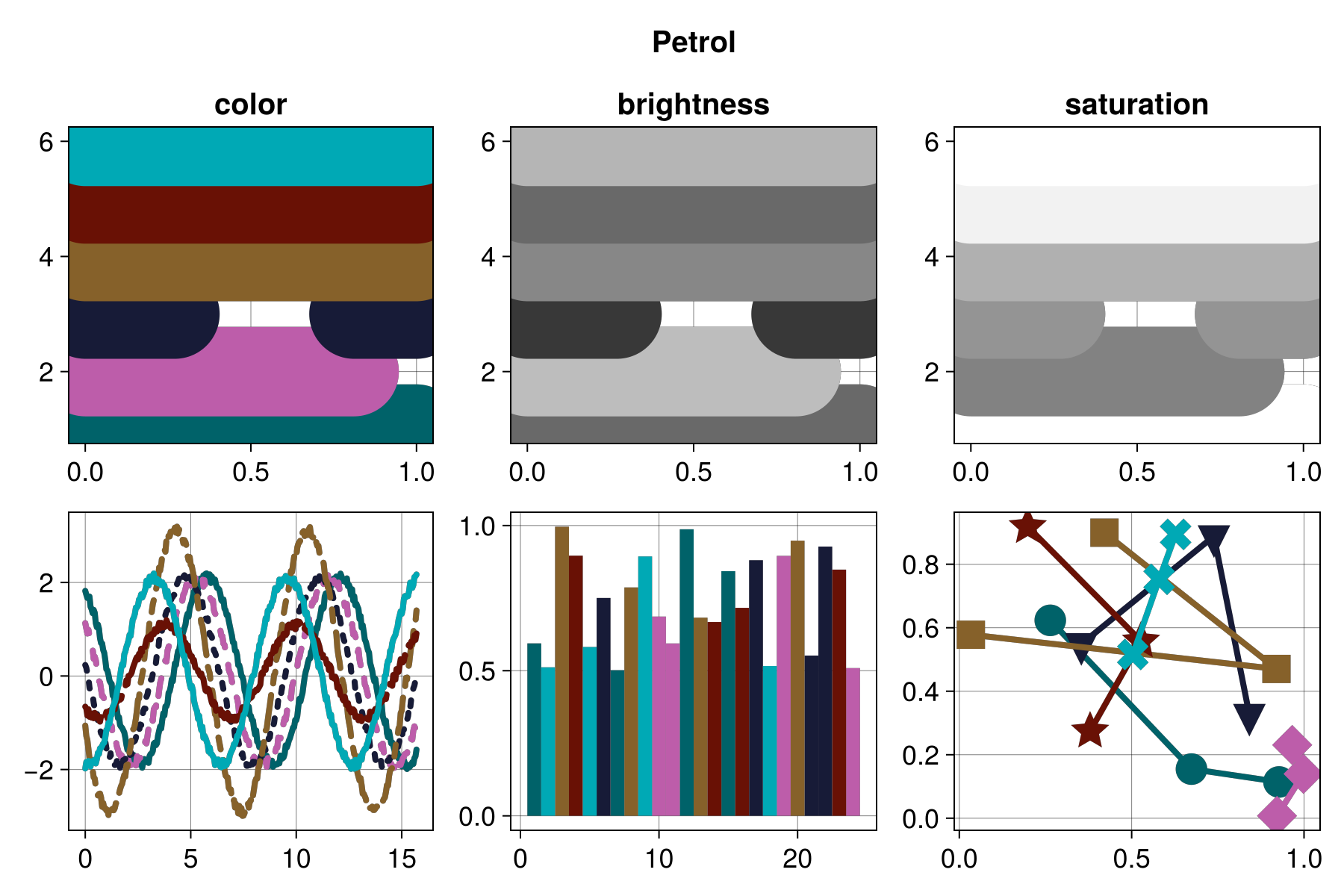

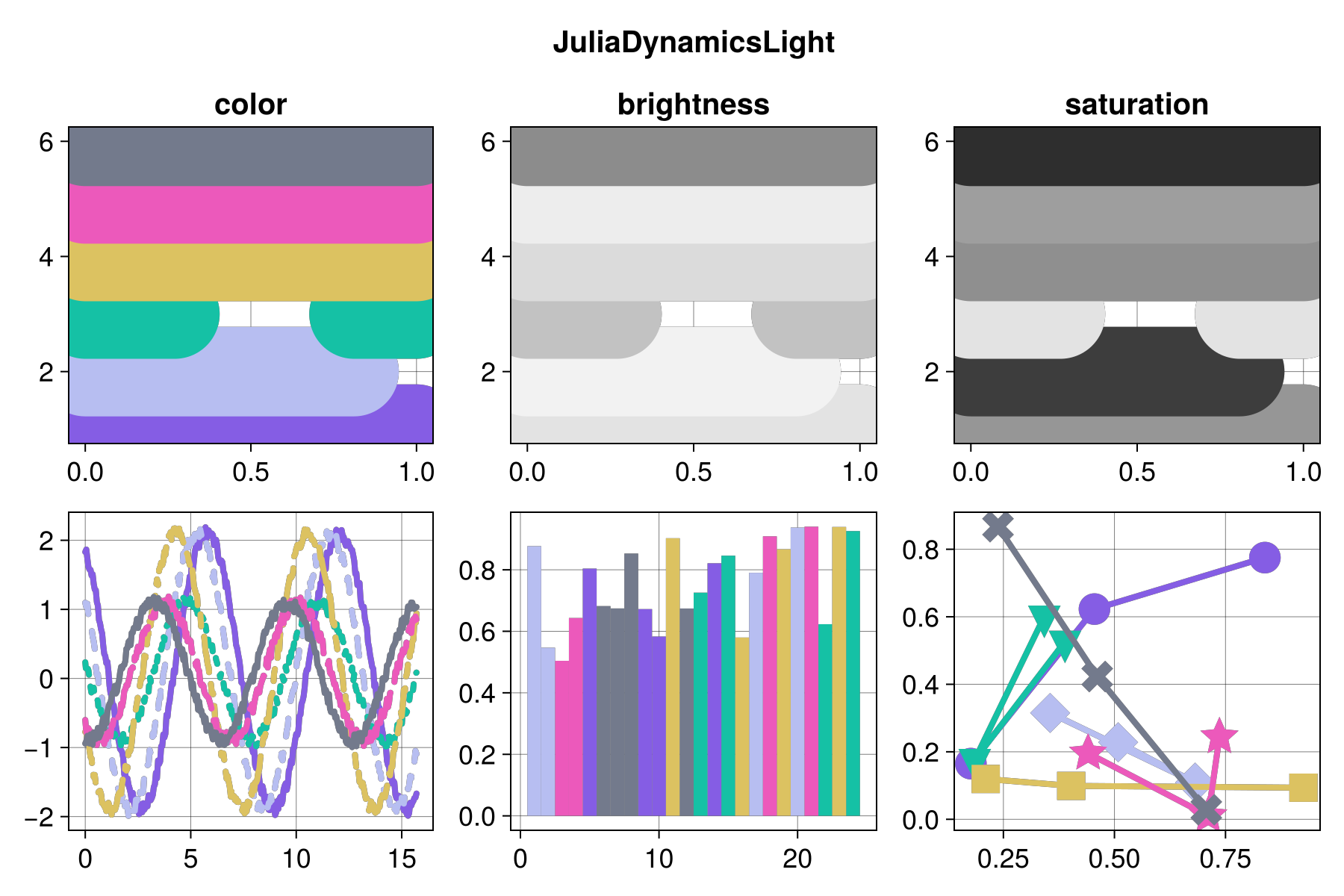

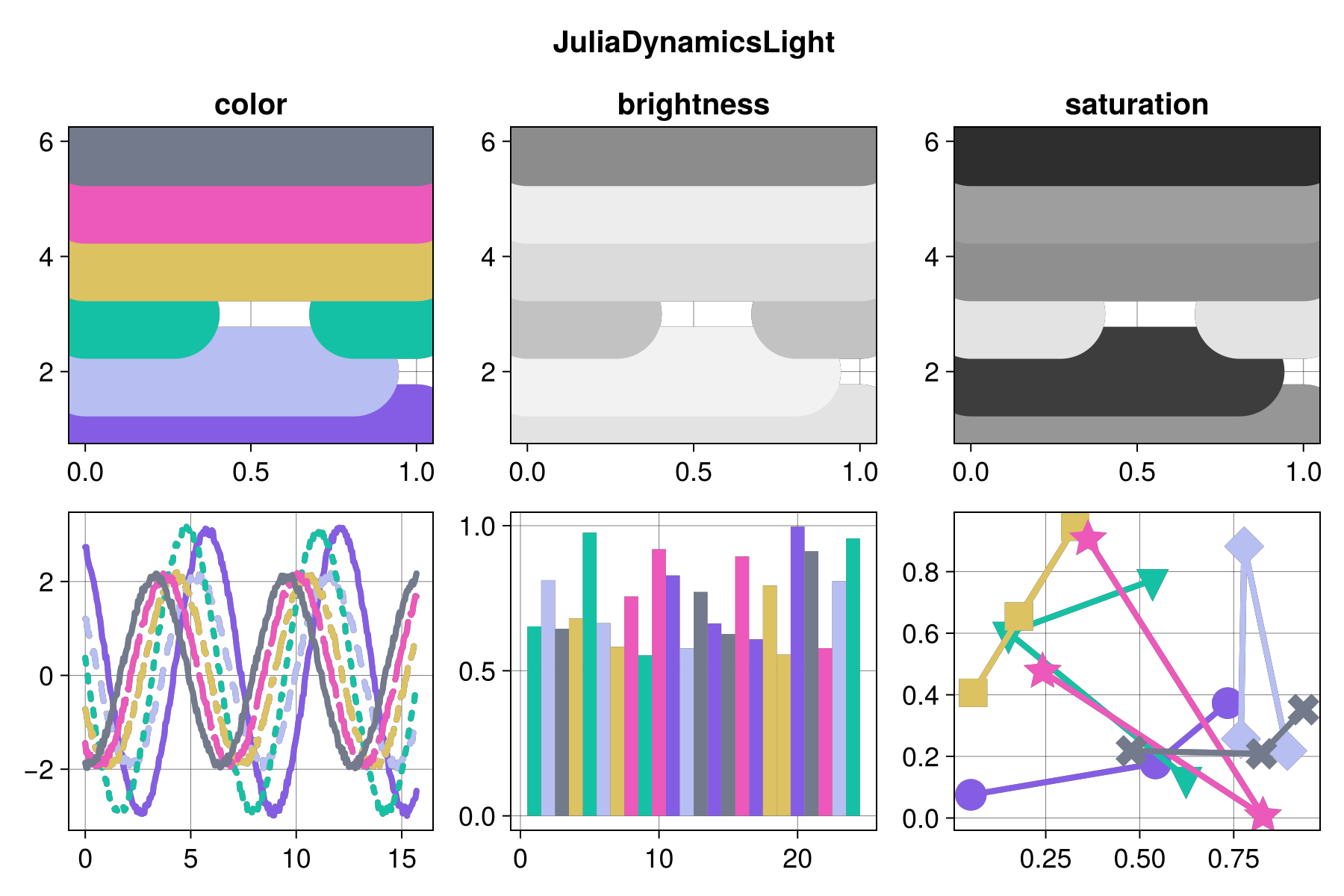

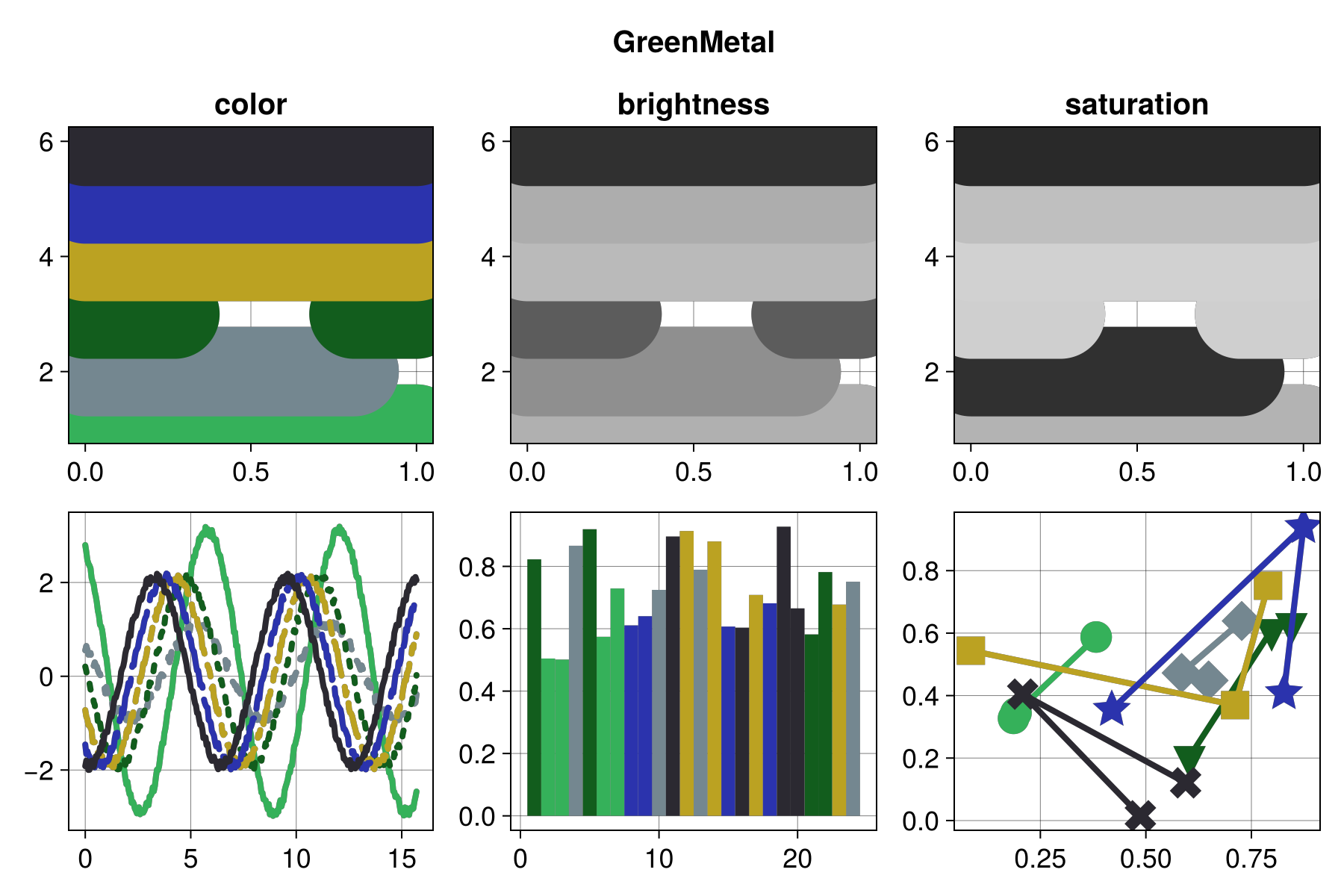

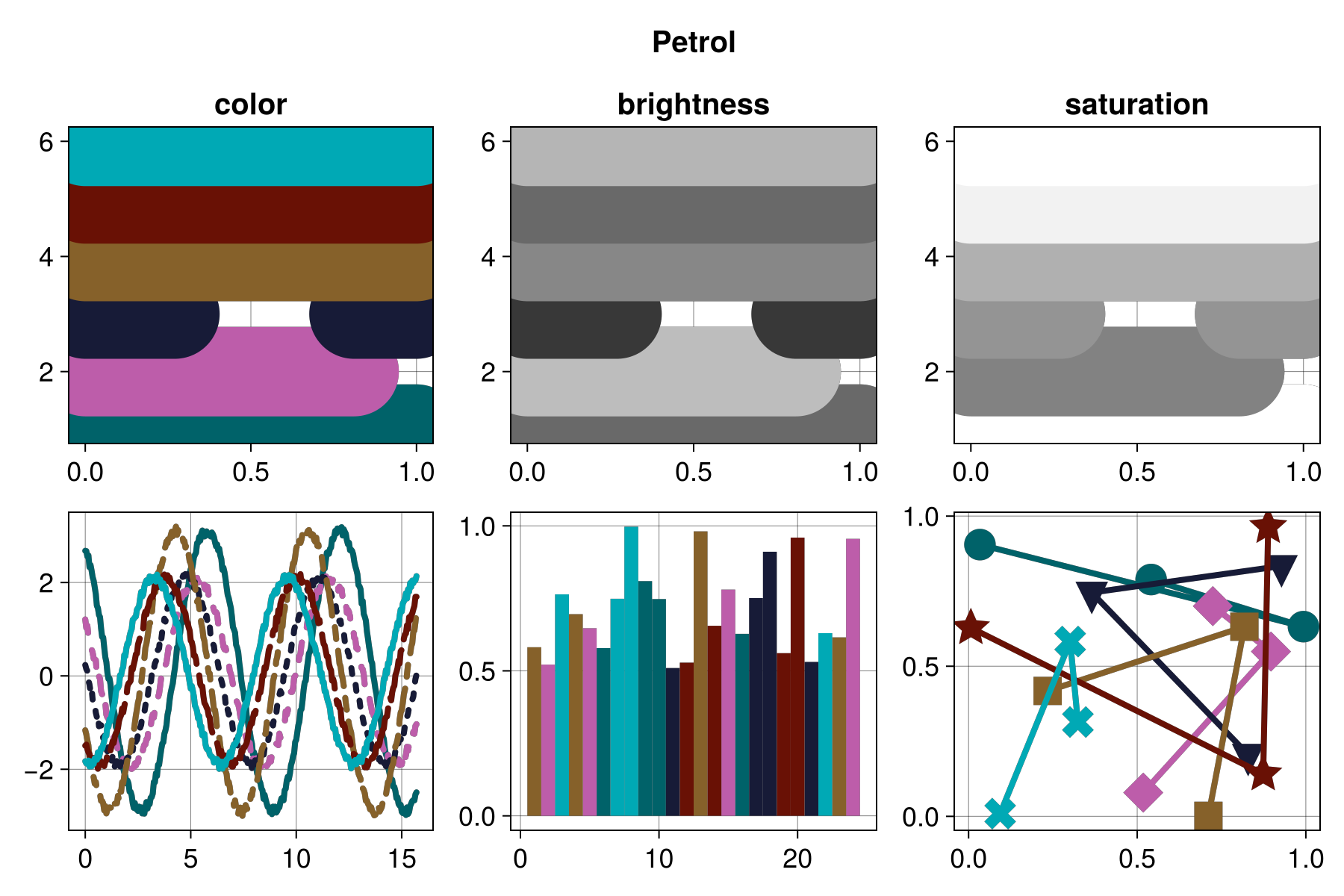

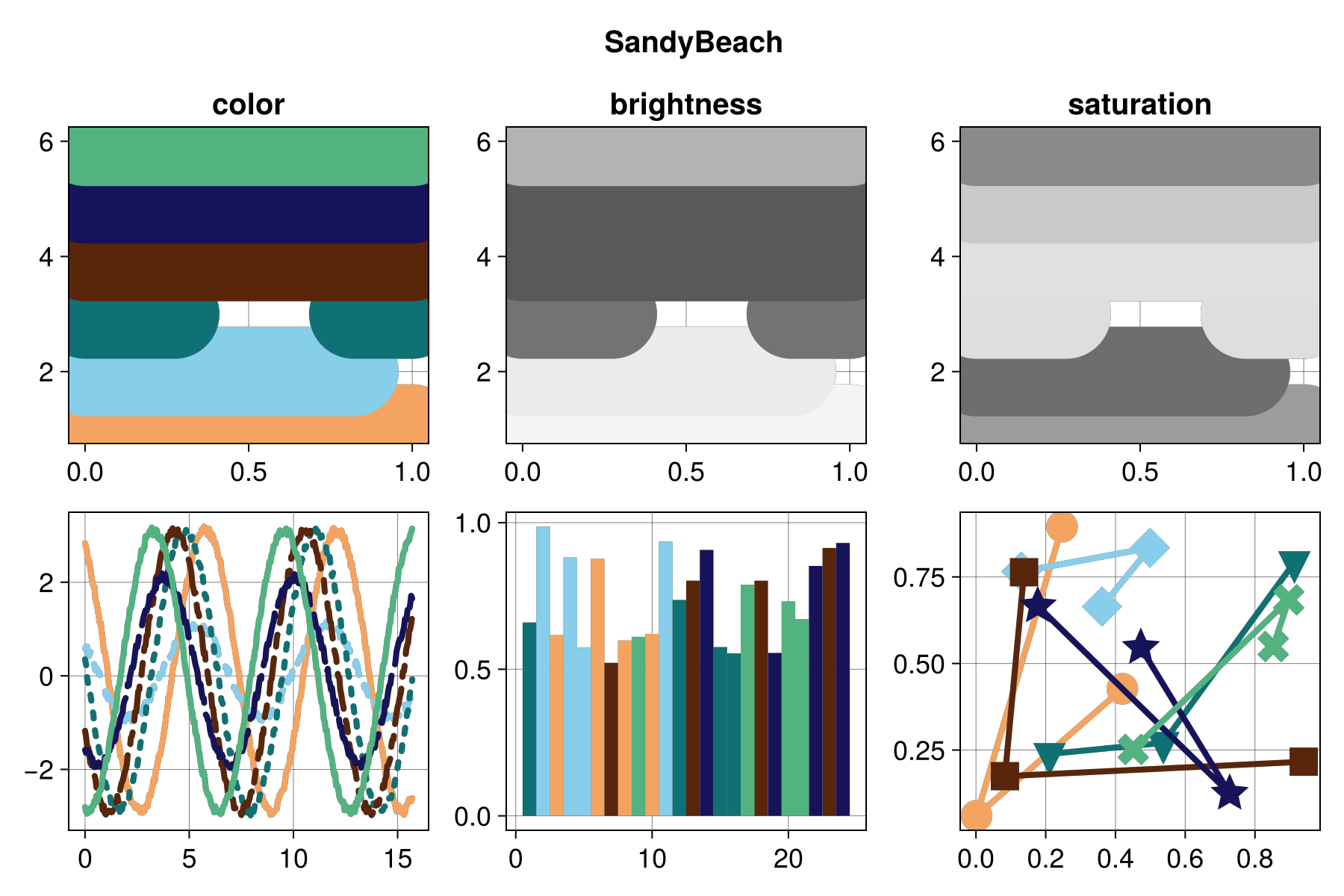

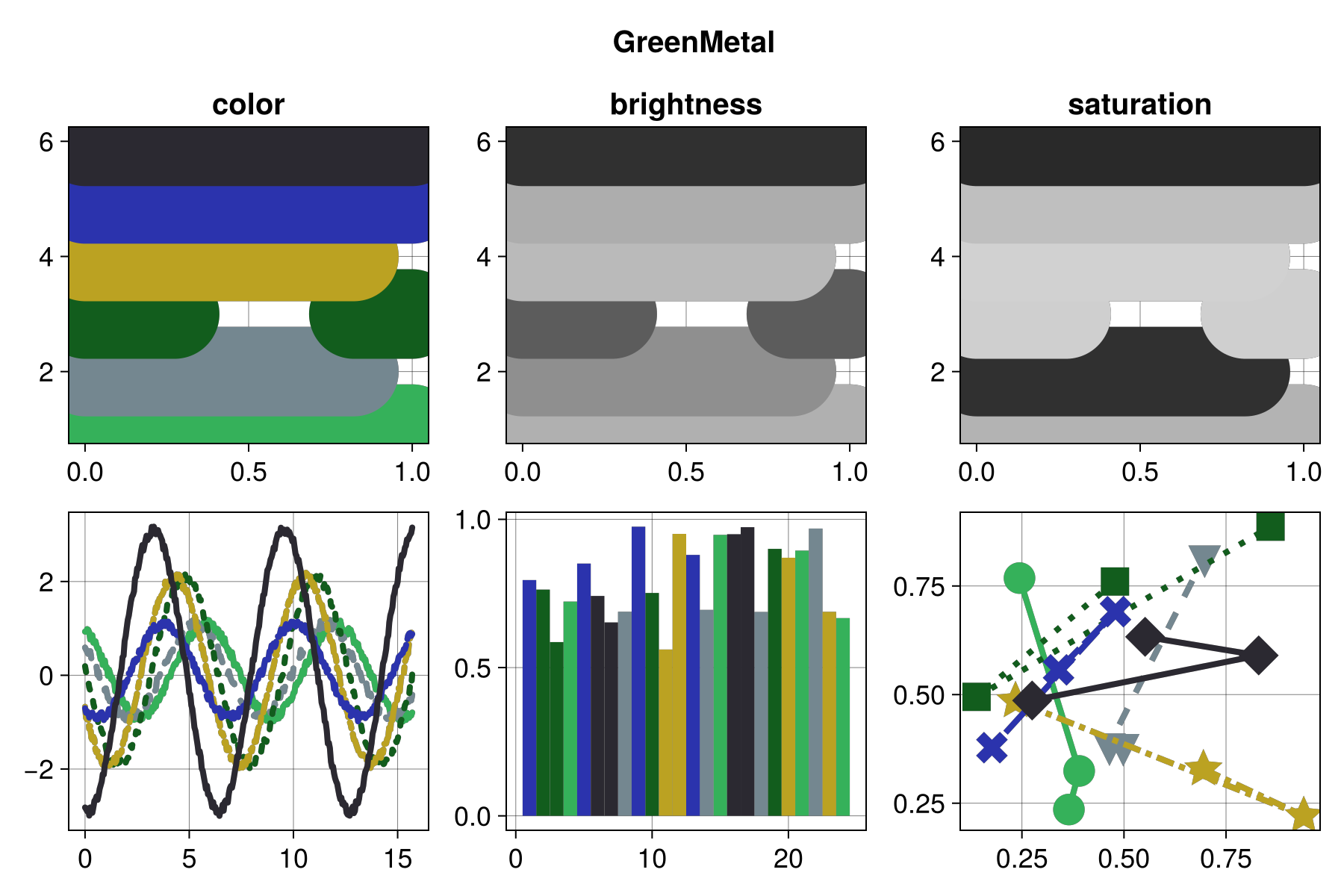

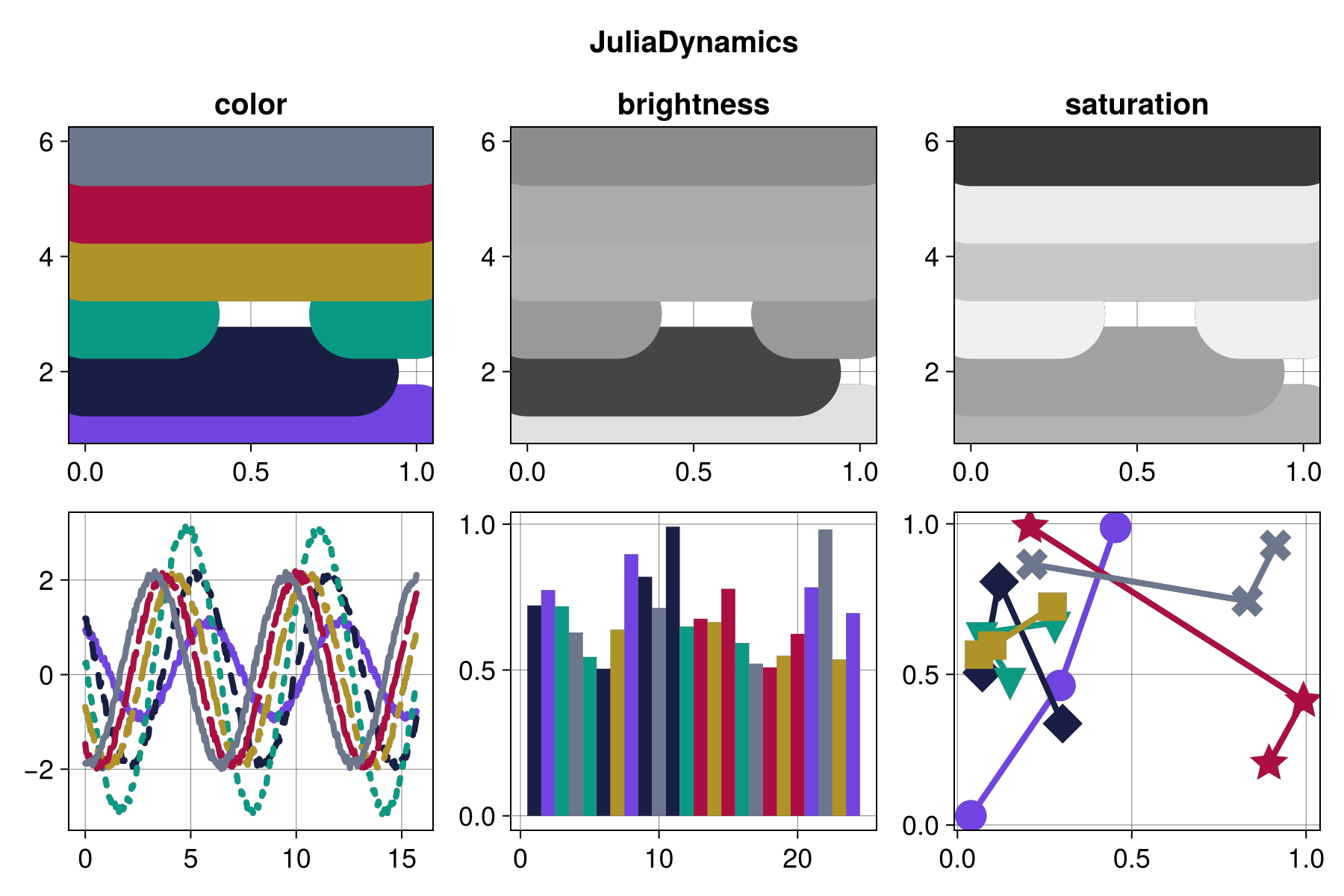

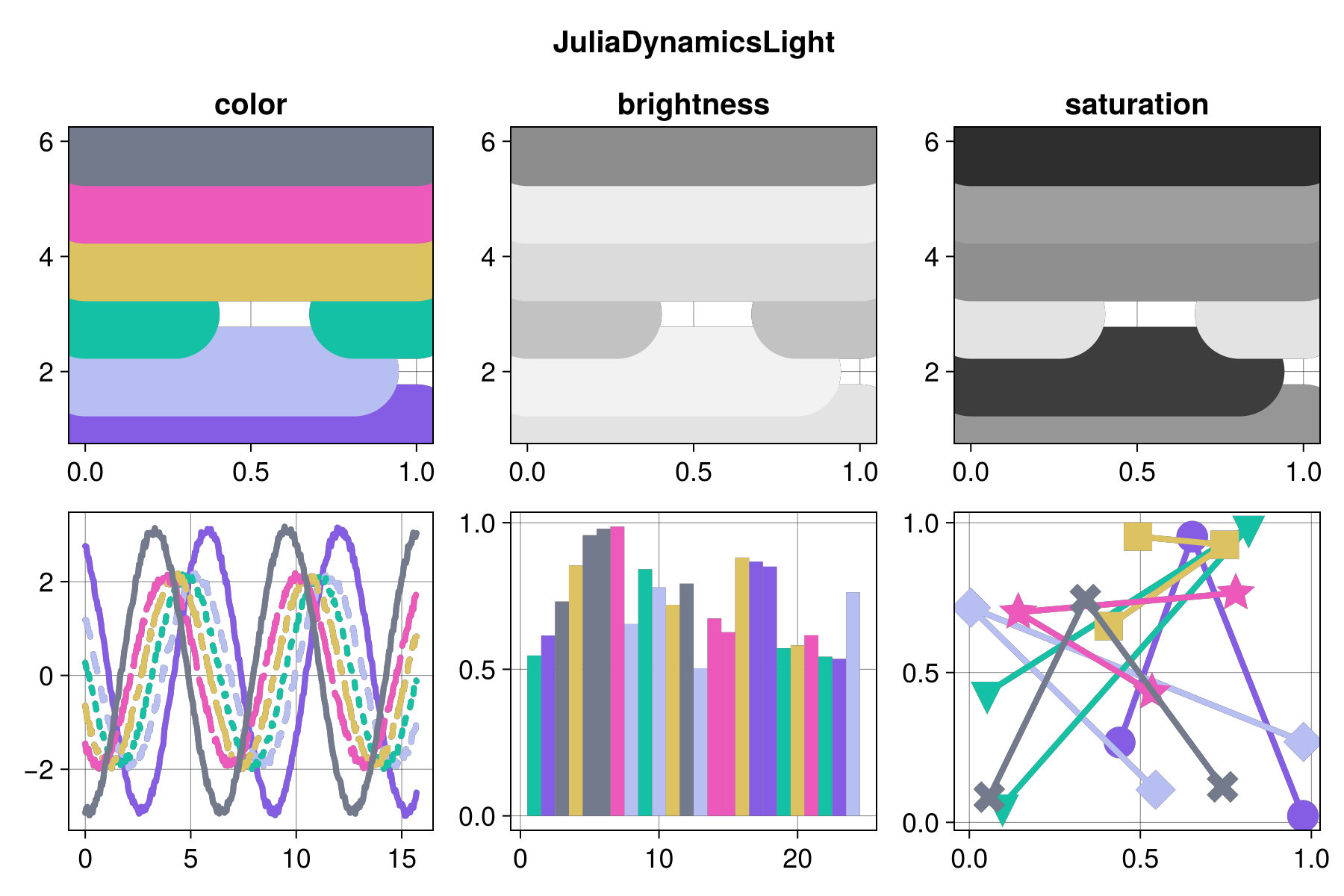

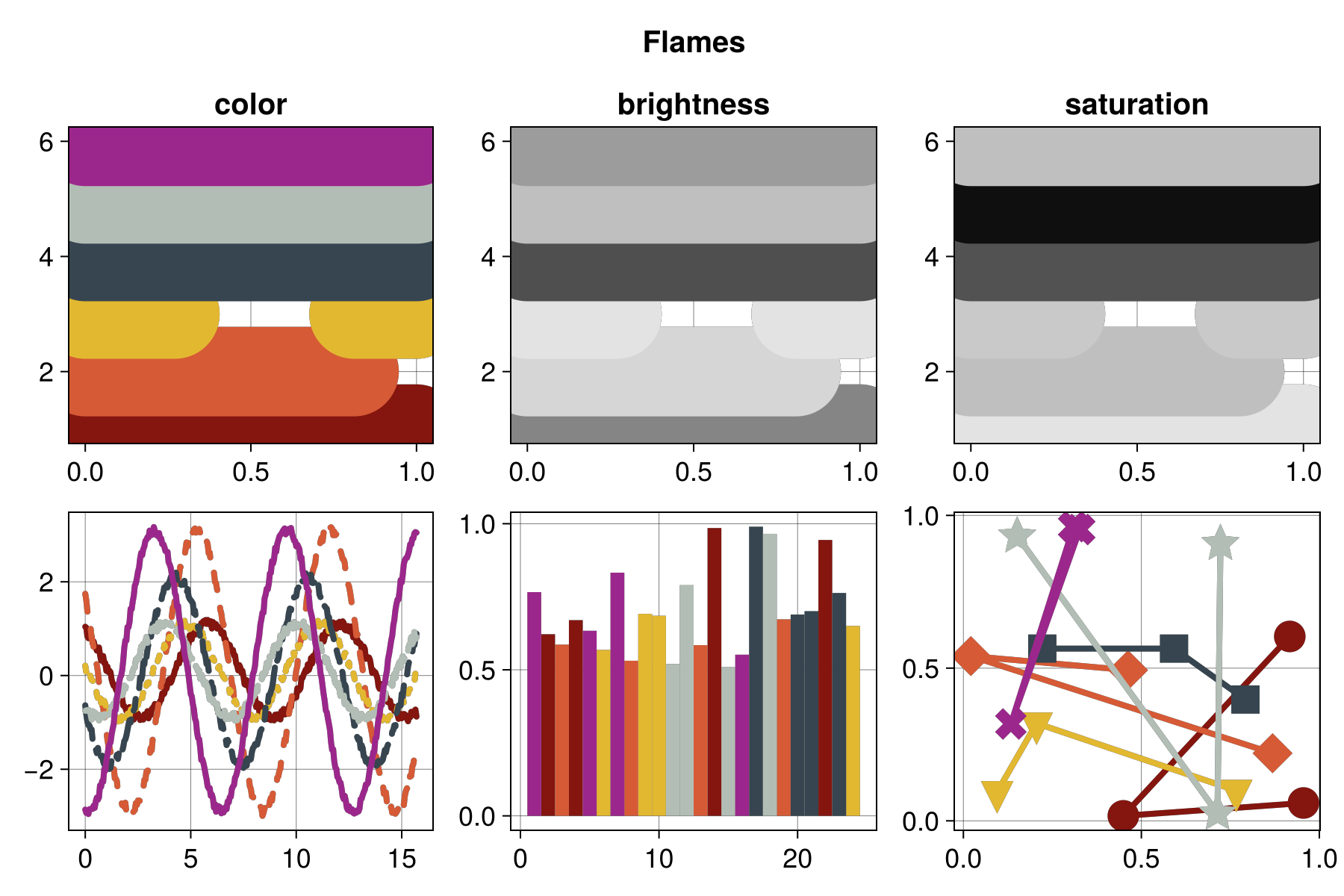

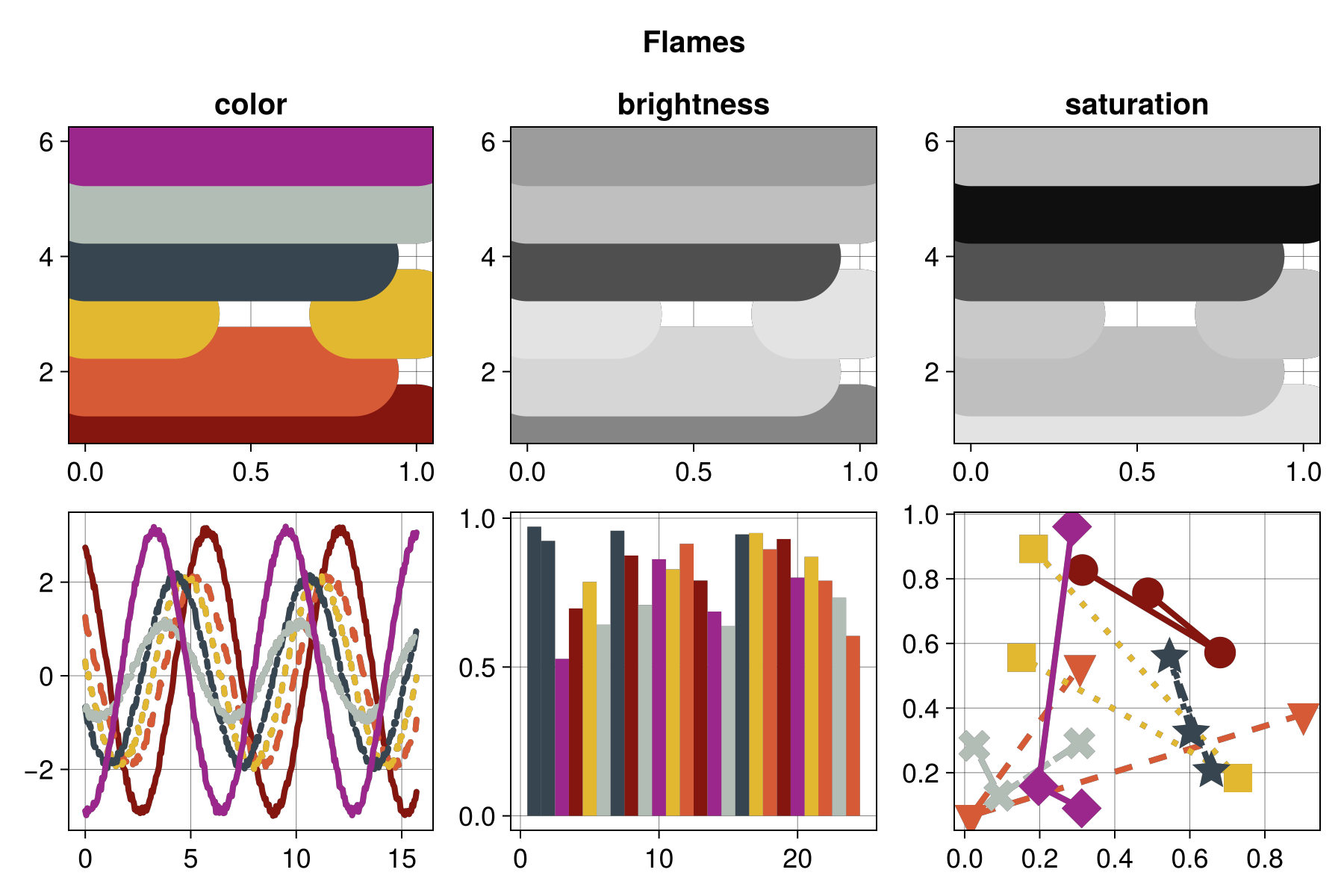

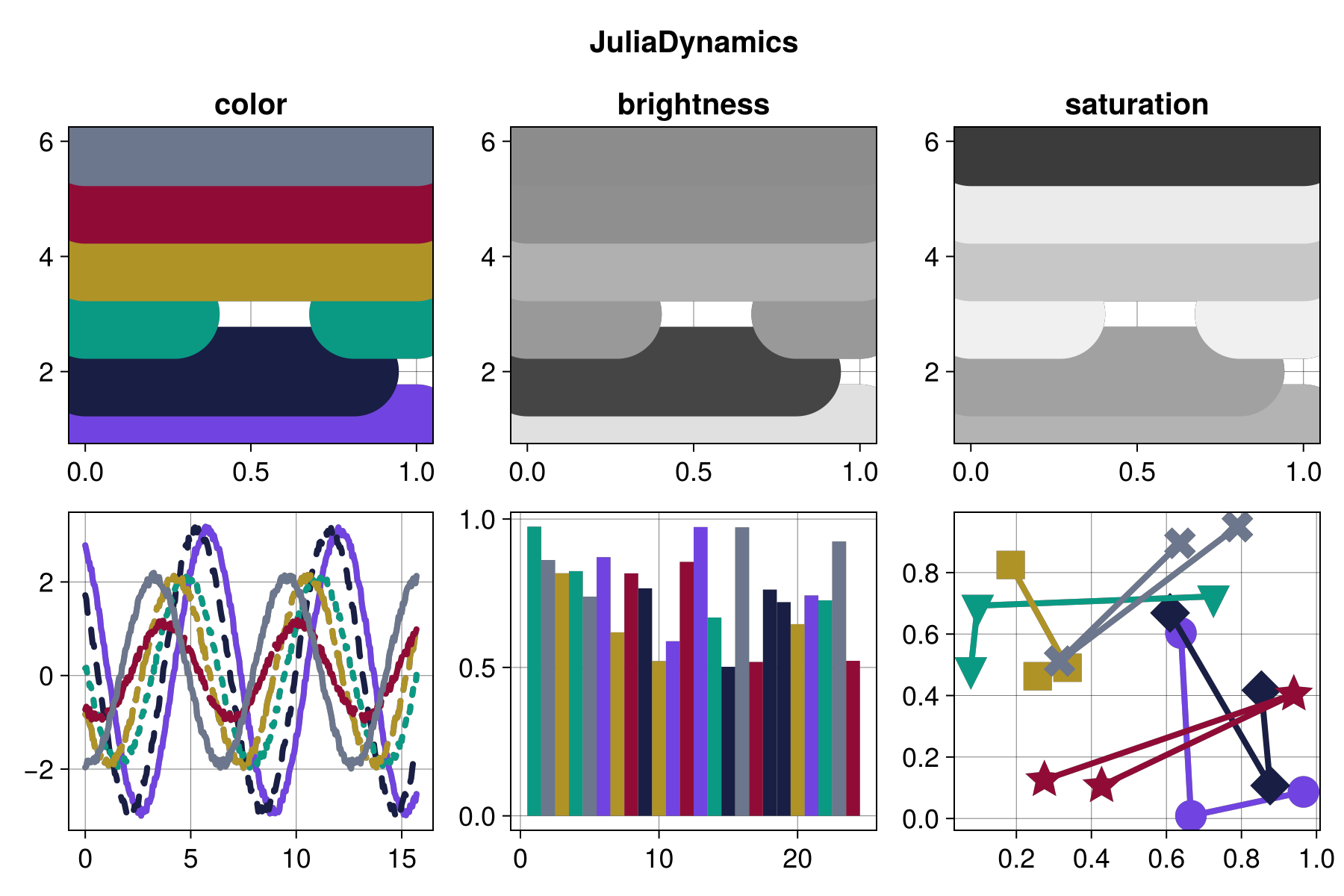

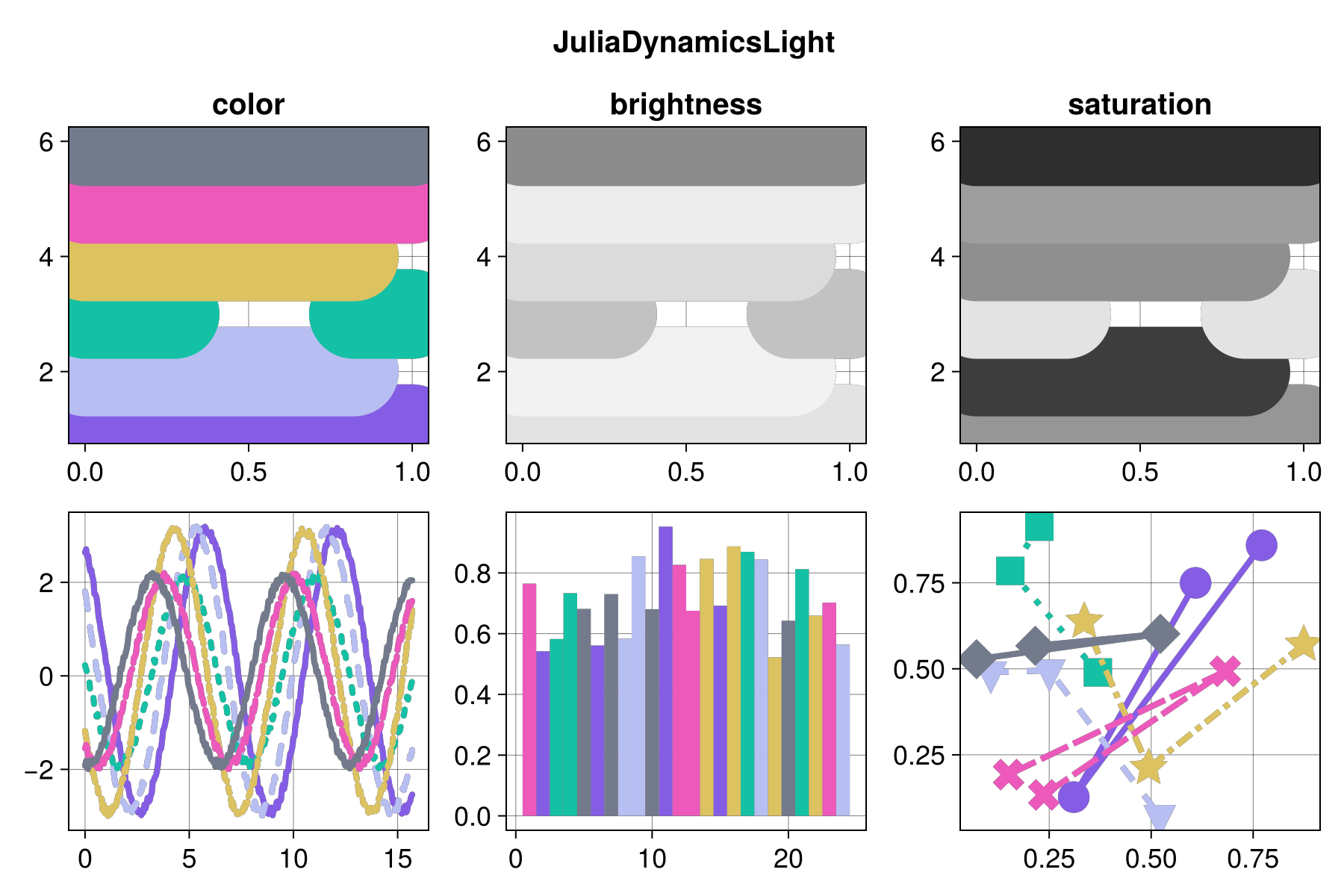

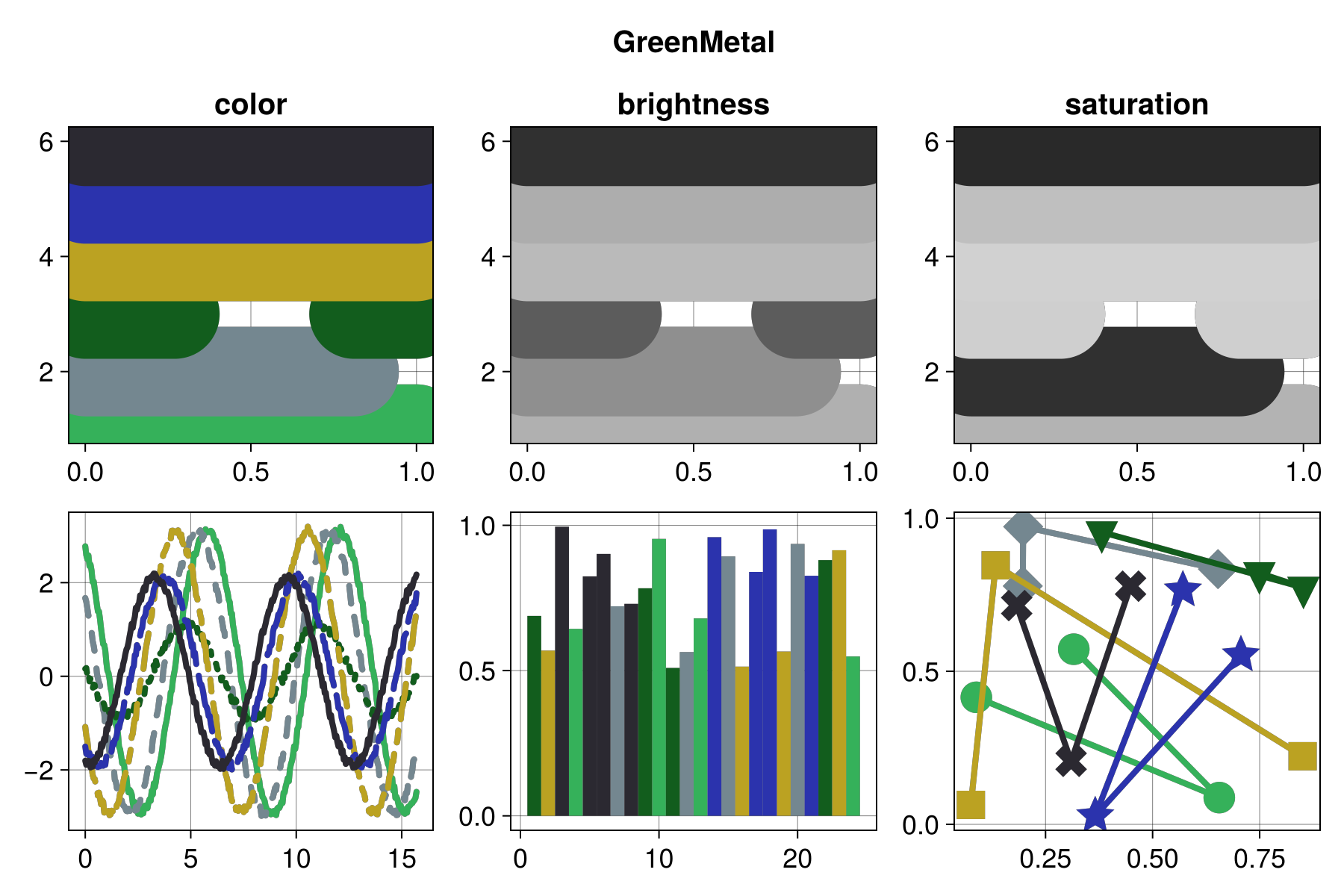

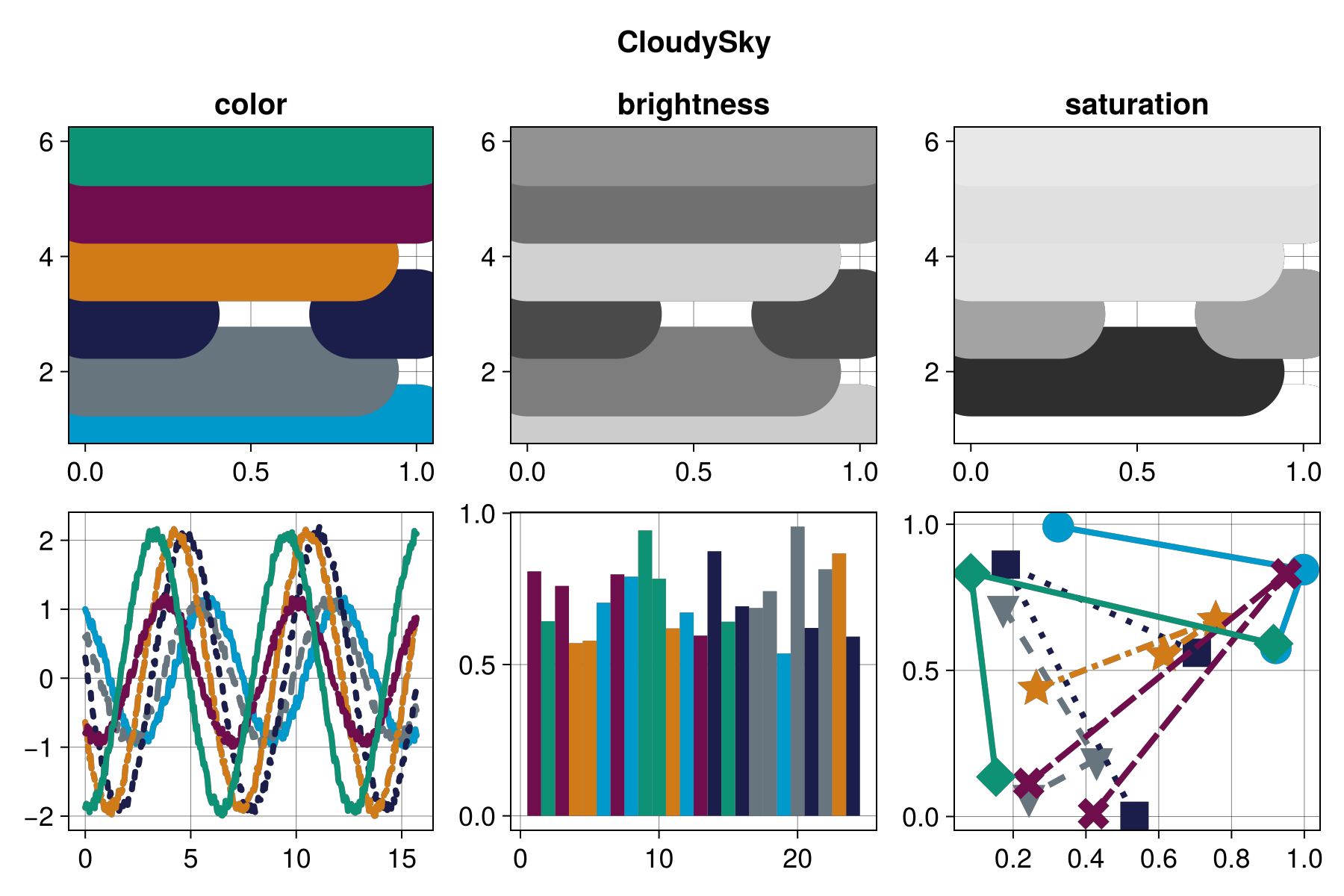

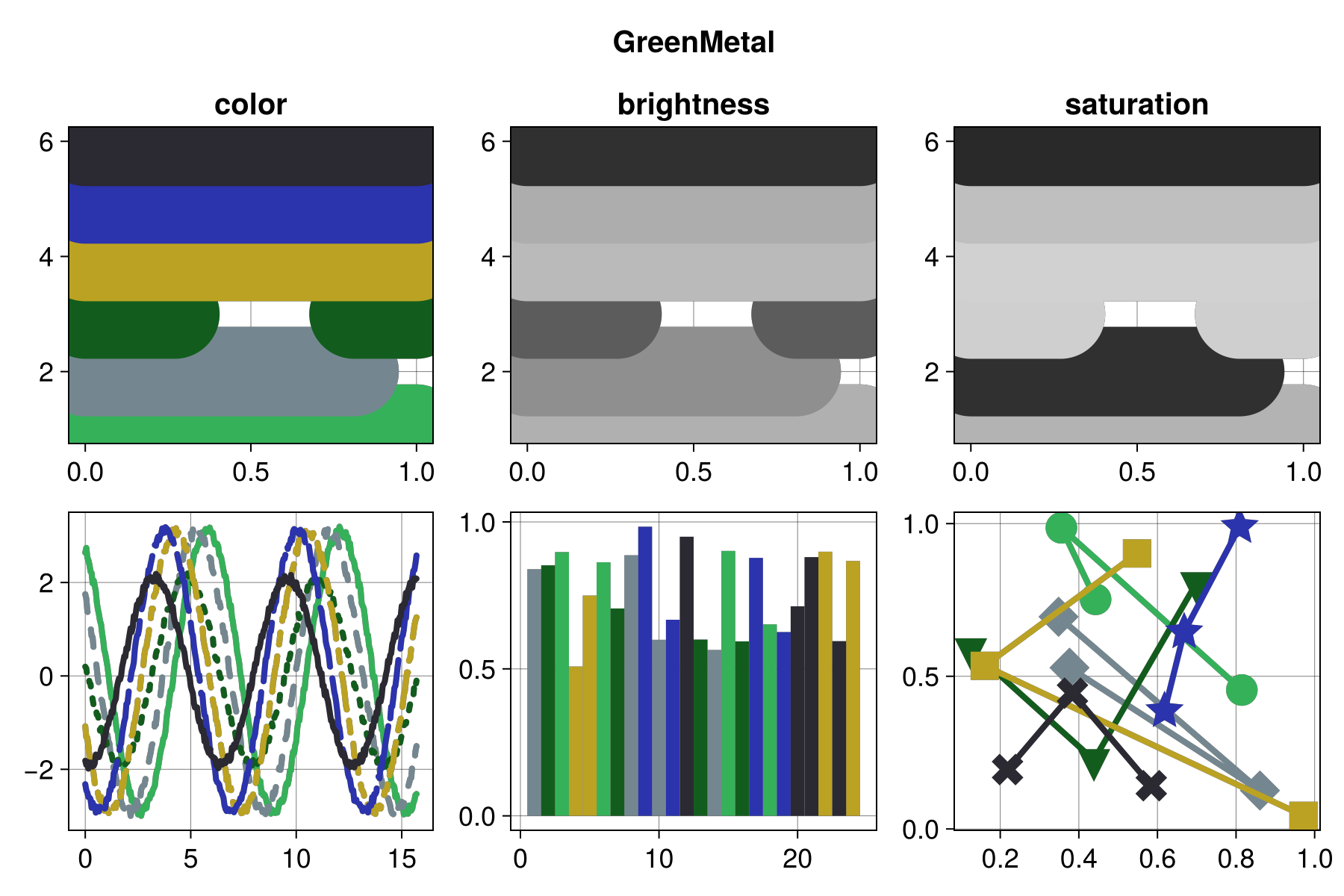

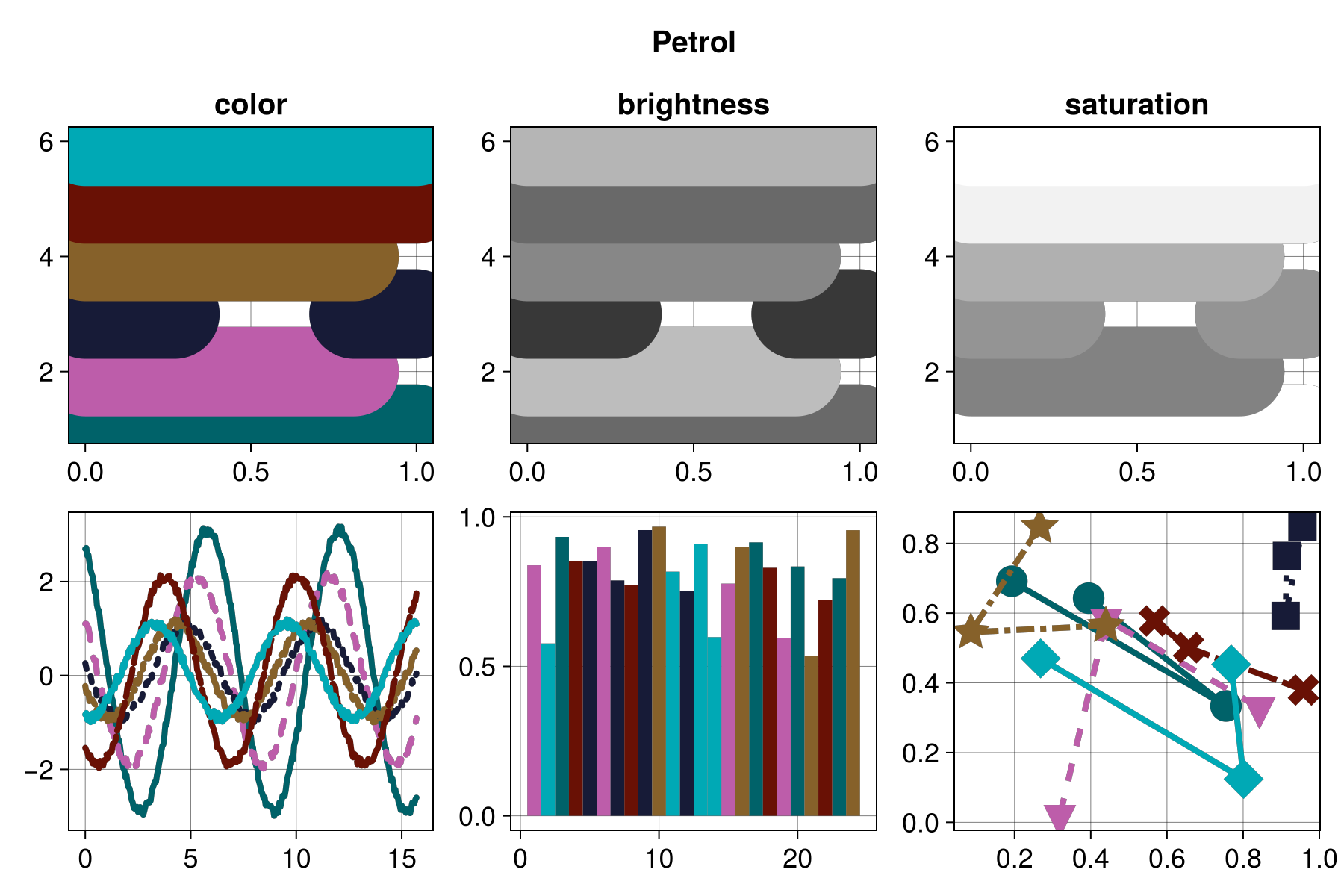

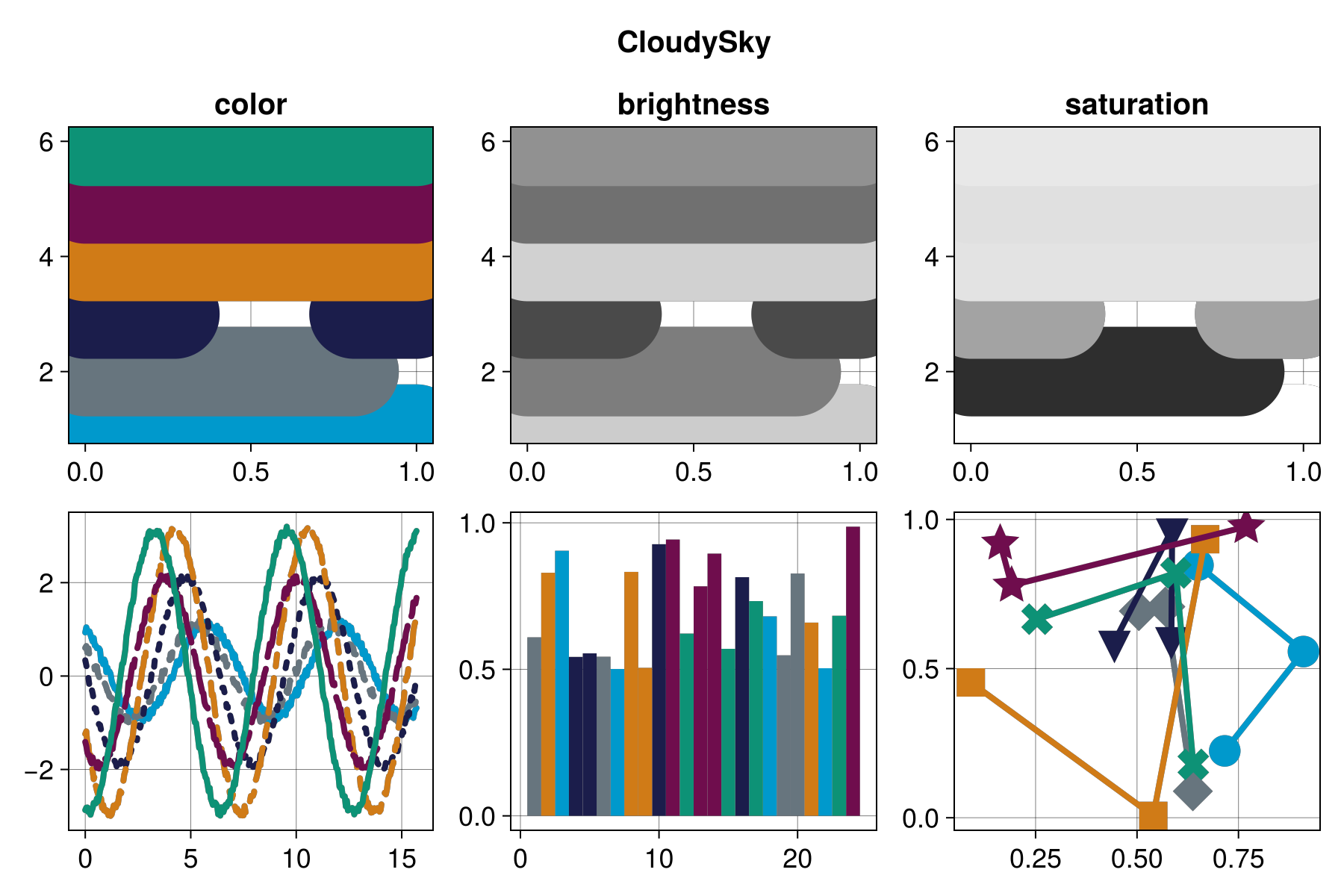

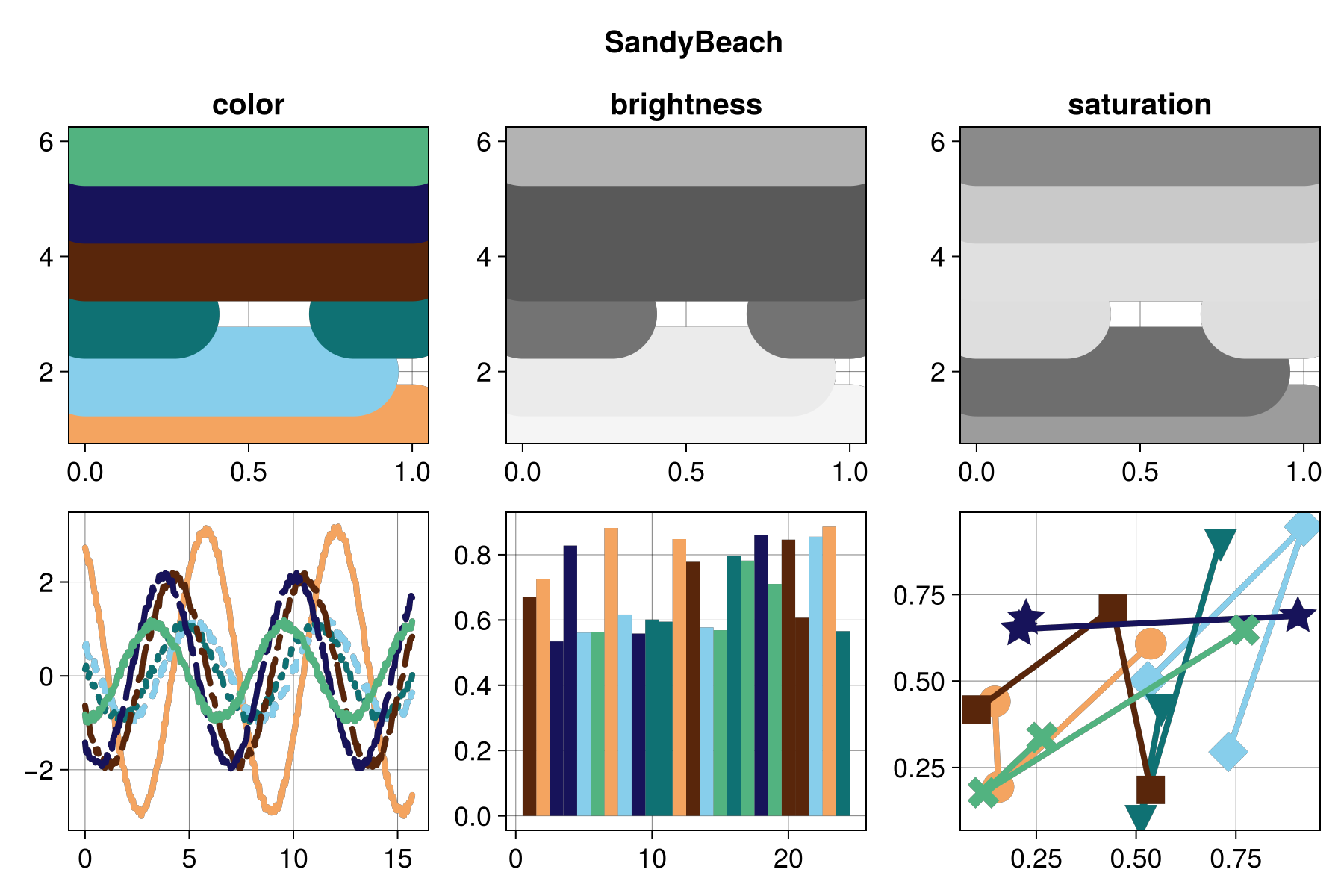

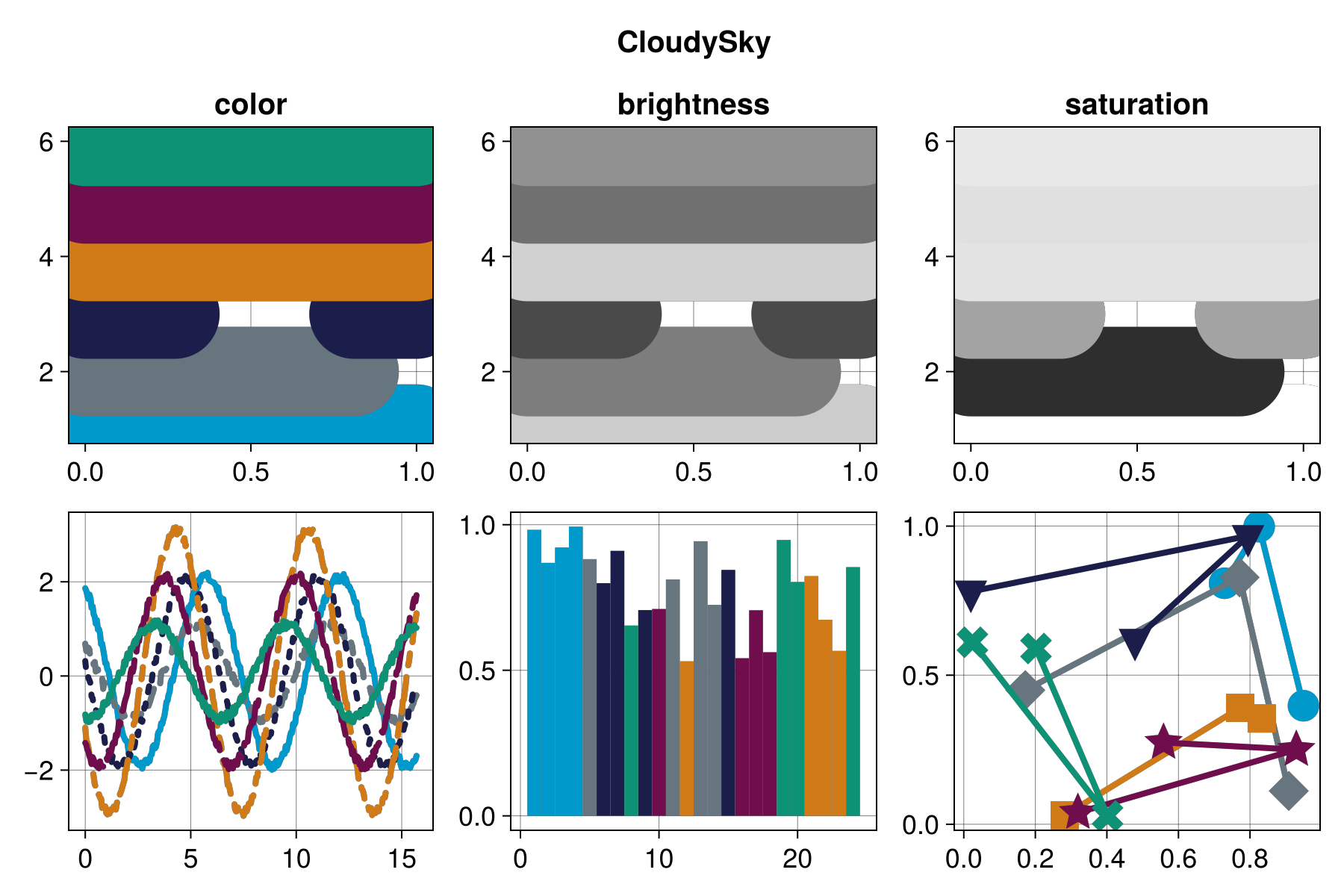

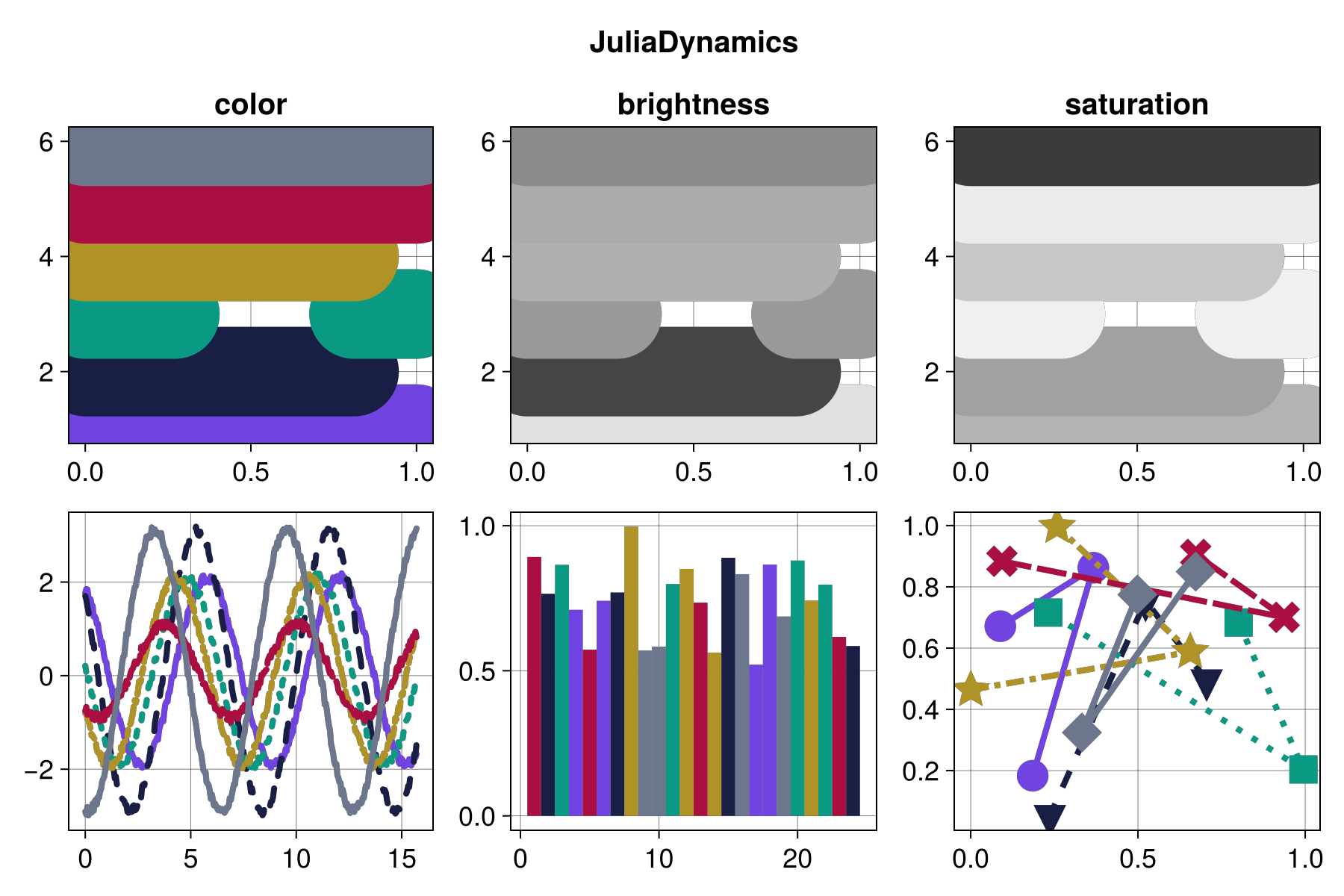

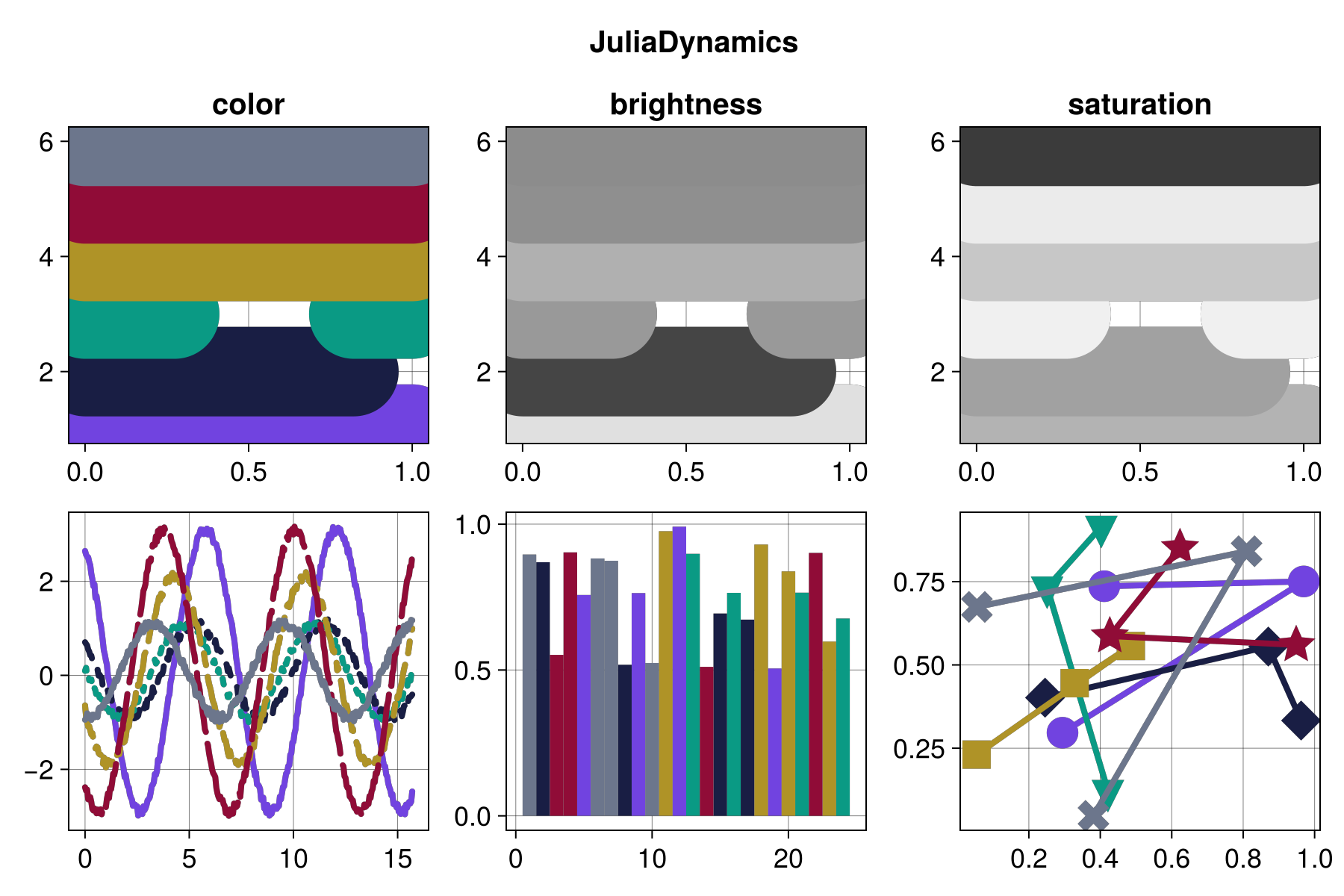

2. Provide beautiful themes that maximize clarity. Different themes can be used for different projects and one can easily switch between light and dark background themes.

You are more than welcomed to use this to benefit from the themes, or the convenience functions within. Feel free to contribute PRs adding your own themes or more convenience functions.

Besides themeing, this package also provides several convenience functions for accelerating writing code for creating a figure in a (typically academic) project. Highlight is the axesgrid, figuretitle! and label_axes! functions. MakieForProjects.jl also integrates with DrWatson and overloads wsave for Makie.Figure objects.

For all other information, see the online docs.

lighten(c, f = 1.2)

Lighten given color c by multiplying its luminance with f. If f is less than 1, the color is darkened.

invert_luminance(color)

Return a color with same hue and saturation but luminance inverted.

fadecolor(c::ColorLike, N::Int, fade = 0.5)

Create a vector of N colors based on c but that "fade away" towards full transparency. The alpha channel (transparency) scales as t^fade with t ranging from 0 to 1 (1 being the end of the returned color vector). Use fade = 1 for linear fading or fade = 0 for no fading. Current default makes fading progress faster at start and slower towards the end.

Note: due to how makie handles transparency and different colors in a single line segment, if using fadecolor with lines! plots, it is best to also use the keywords:

linecap = :butt, joinstyle = :round

fadelines!(ax, x, y; fade = 0.5, kw...)

Same as fadecolor but also call lines! with the resulting color and the same instructions as fadecolor.

axesgrid(m, n; kwargs...) -> fig, axs

Create a grid of m rows and n columns of axes in a new figure and return the figure and the Matrix of axis.

Keyword arguments

• sharex/sharey = false: make every row share the y axis and/or every column share the x axis. In this case, tick labels are hidden from the shared axes.
• titles::Vector{String}: if given, they are used as titles for the axes of the top row. Can also be a single String, in which case it is used for all axes.
• xlabels::Vector{String}: if given, they are used as x labels of the axes in the bottom row. Can also be a single String, in which case it is used for all axes.
• ylabels::Vector{String}: if given, they are used as y labels of the axes in the leftmost column. Can also be a single String, in which case it is used for all axes.
• title::String: if given, it is used as super-title for the entire figure using the figuretitle! function.
• xlims/ylims: if given, they set the limits of x/y for all axes.
• kwargs...: all further keywords are propagated to Figure.

axesgrid!(fig_loc, args...; kw...) -> axs

Do exactly the same with axesgrid(args...; kw...), but generate axes in a provided figure, or figure location, or grid layout from Makie.jl. E.g., fig = Figure(); fig_loc = fig[1,1].

figuretitle!(fig, title; kwargs...)

Add a title to a Figure, that looks the same as the title of an Axis by using the same default font. kwargs are propagated to Label.

label_axes!(axs::Iterable{Axis};
    valign = :top, halign = :right, pad = 4,
    transformation = x -> string(x),
    labels = range('a'; step = 1, length = length(axs)),
    add_box = false, boxkw = NamedTuple(), kw...
)

Add labels (like a,b,c,...) to all axes.

Keywords adjust location and padding and printing. All other keywords are propagated to either Label or textbox!, depending on whether add_box is true.

space_out_legend!(legend)

Space out the contents of a given legend, so that the banks are spaced equidistantly and cover the full width available for the legend. This function is supposed to be called for horizontal legends that should span the full width of a column and hence are placed either on top or below an axis.

textbox!(ax::Axis, text::AbstractString; kw...)

Add a small textbox to ax containing the given text. This creates a Makie.Textbox at the same grid layout position as ax. By default, the textbox is placed at the top right corner with proper alignment. All keywords are propagated to Textbox.

negate_remove_bg(file; threshold = 0.02, bg = :white, overwrite = false)

Create an negated (or color inverted) version of the image at file with background removed, so that it may be used in environments with dark background. The threshold decides when a pixel should be made transparent. If the image already has a dark background, pass bg = :black instead, which will not negate the image but still remove the background.

remove_bg(file; threshold = 0.02, overwrite = false)

Remove the background for figure in file (all pixels with luminosity > 1 - threshold). Either overwrite original file or make a copy with suffix _bgr.
